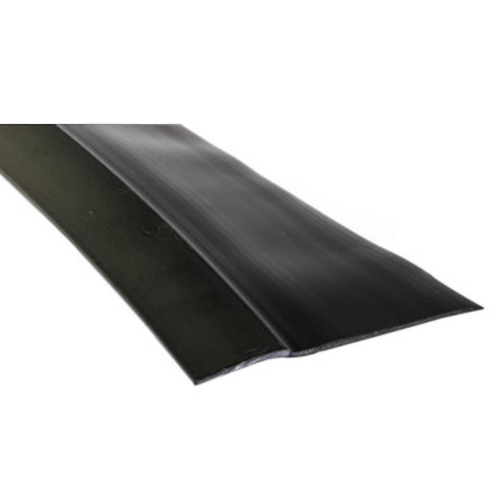

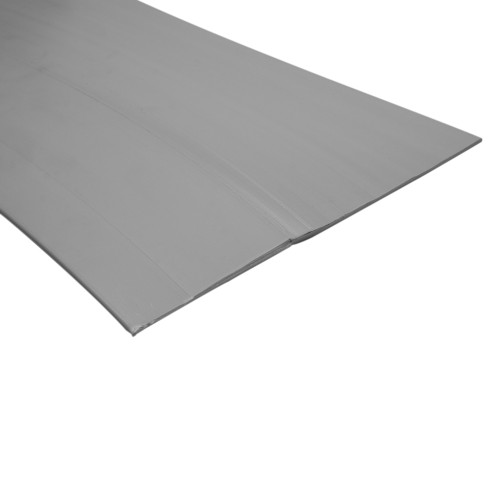

Roll Up Door Header Seal

The roll up door header seal is designed to help close the gap along the header of rolling garage doors, creating a more effective barrier between the door and building opening. Designed for rolling door systems in light commercial applications, this heavy-duty header seal works with corrugated doors to help reduce air and moisture intrusion around the top of the opening.

This header seal for roll up doors combines a 2-1/2" rigid section with a 3" flexible section for a total width of 5-1/2". It is well suited for warehouses, service bays, multi-unit facilities, and other applications where improved protection from outside conditions is needed. The seal is sold by the foot and arrives as one continuous piece in the footage ordered.

Why Choose This Roll Up Door Header Seal?

• Helps seal gaps along corrugated rolling doors
• Reduces air and moisture intrusion around the door header
• Heavy-duty construction designed for rolling garage door applications
• Helps improve energy efficiency and protect the interior from environmental exposure
• Suitable for warehouses, service bays, and multi-unit facilities
• Works for both retrofit and new installations

Choosing Your Weather Seal

Before ordering, compare the dimensions and configuration of this seal with your existing rolling door and header area. This garage door header seal is compatible with a variety of rolling door sizes and models, but rolling door configurations can vary.

Technical Specifications

Package Includes

• One roll up door header seal in the ordered footage

Installation Best Practices

This header seal installs at the header of the rolling door opening. Before installation, inspect the existing mounting area and door opening so the new seal can be positioned correctly and make effective contact with the corrugated door.

• Measure the door opening before ordering to determine the footage required.
• Inspect the header and mounting surface before beginning installation.
• Remove dirt and debris that could interfere with positioning the seal.
• Position the flexible section so it can make consistent contact with the corrugated door.
• Check the seal across the full width of the opening after installation to verify even contact.

Refer to the product installation manual for additional installation information.

Compatibility Notice

Garage door designs can vary, and retainer shapes and sizes may have changed over time. Please double-check your existing retainer or track before ordering and contact us with photos or measurements if you need help choosing the right seal.

Frequently Asked Questions

What is a roll up door header seal used for?

A roll up door header seal helps close the gap at the top of a rolling garage door opening. This seal is designed to help reduce air and moisture intrusion around corrugated rolling doors.

How wide is this roll up garage door header seal?

The seal measures 5-1/2" wide overall, with a 2-1/2" rigid section and a 3" flexible section.

How do I order the correct length?

Enter the desired footage in the Quantity field. The header seal is supplied as one continuous piece in the total footage ordered.

Will this garage door header seal fit my rolling door?

The seal is compatible with a variety of rolling door sizes and models. Because door configurations can vary, compare the 5-1/2" profile and your existing header arrangement before ordering.
