Seal. Secure. Operate.
The Garage Door EPDM Rubber Seal Kit is a complete garage door seal kit designed to help seal the gaps between the garage door and the jambs and header. Each kit includes pre-installed EPDM rubber weather seals mounted in corrosion-resistant #4 aluminum retainers, along with mounting fasteners for a straightforward installation. Designed for residential and commercial sectional garage doors, these kits are available in multiple door sizes, retainer profiles, and EPDM seal widths to match your application.
EPDM synthetic rubber remains flexible across an extremely wide temperature range, making it an excellent choice for garages exposed to hot summers, freezing winters, dust, moisture, drafts, insects, and other outdoor elements. With pre-punched, pre-cut retainers and no drilling required, this EPDM garage door seal kit provides an easy way to improve your door's weather seal while reducing installation time.
| Option | How to Choose |
|---|---|
| Door Size | Select the kit that matches or exceeds your garage door size. Kits can be trimmed during installation if your door is slightly smaller than the selected size. |

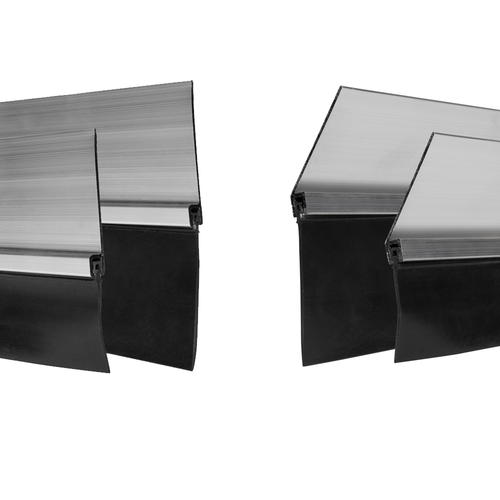

| Retainer Profile | Choose a straight retainer when you want the seal to sit flush against the door. Select the 45° retainer when a larger sealing gap is required between the door and the weather seal. |
| EPDM Seal Size | Choose between the available 1-1/8" or 2-1/2" EPDM seal sizes based on your sealing requirements and compatible retainer profile. |
About Our Cut-Down Kits: To reduce shipping costs while making installation easier, retainers are supplied in shorter pre-cut 4' 1" or 5' 1" sections.
Example: An 8' × 8' kit includes six 4' 1" retainer sections. Larger kits contain a combination of 4' 1" and 5' 1" retainers depending on the selected door size.
| Manufacturer | Action Industries |
|---|---|
| Product Type | Garage Door EPDM Rubber Weather Seal Kit |
| Seal Material | EPDM Synthetic Rubber |
| Retainer Material | #4 Aluminum |
| Available Seal Sizes | 1-1/8" or 2-1/2" |
| Retainer Profiles | Straight or 45° |
| Color | Black |
| Temperature Range | -50°F to 350°F |
| Application | Residential and commercial sectional garage doors |
| Installation | Pre-punched retainers with no drilling required |
Measure the top and sides of the garage door, trim the retainers if necessary, position the retainers along the jambs and header, and secure them using the included fasteners. Since the retainers are pre-punched, no additional drilling is required.
Frequently Asked Questions
What does this garage door weather seal kit seal?
This kit seals the gaps between the garage door and the jambs and header to help reduce drafts, dust, moisture, insects, and other outdoor contaminants.
How do I choose between the straight and 45° retainers?
Straight retainers position the EPDM seal flush against the door, while 45° retainers create a larger air gap between the seal and the door. Select the profile that best matches your door and sealing requirements.
Can the kit be trimmed to fit my garage door?
Yes. The aluminum retainers can be cut to length during installation, allowing the kit to fit doors that are slightly smaller than the selected kit size.
Why are the retainers supplied in multiple sections?
The aluminum retainers are intentionally supplied in shorter sections to reduce shipping costs while making handling and installation easier. Once installed, they provide the same finished performance as longer retainers.
