Zap

ZAP High Power Sectional Jackshaft Garage Door Opener - ZAP 8825-HP Series 3

SKU:
8825-3-HP
MSRP: $963.81
$876.19
(You save $87.62 )
  • Usually Ships 4 to 7 Business Days
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Action Direct's ZAP 8825-HP Series 3 High Power Sectional Jackshaft Garage Door Opener is assembled right here in America to be one the safest, quietest, smallest side mount DC operators available in the industry. The Zap DC garage door operator is designed with SafetySense technology and allows the Zap operator to detect obstructions on any part of the door when it's opening or closing.

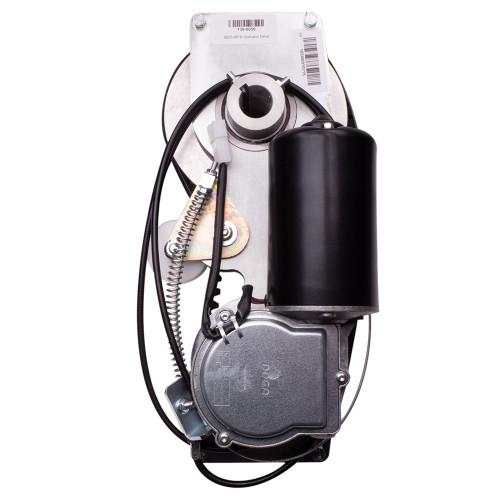

As a heavy-duty commercial model operator, the 1 1/2HP motor can run sectional overhead garage doors up to 480 square feet in size, 1800 pounds in balanced weight with track configurations such as low headroom, standard lift, high lift, and full vertical lift. Like all of our Zap model operators, the motor assembly consists of the motor, two pulleys and one belt for a quiet operation. Installation only requires 7 1/4” of side clearance and 5” above the center of your spring shaft, which allows it to function in areas with limited space. The operator is NEMA 4 rated for resistance to water/moisture and features an auto close timer, cycle counter, and service due reminder. You can also incorporate several auxiliary items to the Zap 8825-3-HP. These include interior/exterior lighting, additional wall controls, swipe card devices, dock equipment, motion sensors, and alarm systems, and several more. Installation is easy and requires one person with a ladder to install the motor assembly on the spring shaft. Unlike other operators, the control box needs only to be fastened to the wall with four screws. It is powered by plugging it into a nearby outlet in your garage or shop (electrical pigtail required). Finally, just let the door open and close two times and the 8825-3-HP and it will set its fully open and closed positions.

Product Highlights:

  • Part Number: 8825-3 HPB
  • Side mount
  • DC operator
  • Heavy duty commercial model operator
  • 1 ½ horsepower
  • Safe, quiet & small
  • Compatible door sizes: Up to 480 sq. ft./1800 lbs.
  • Contains the motor, two pulleys and one belt
  • Requires 7 ¼” side clearance & 5” clearance above center spring shaft
  • Program features include auto close timer, cycle counter and service due reminder
  • Auxiliary capabilities include interior/exterior lighting, wall controls, swipe card devices, dock equipment, motion sensors, alarm systems and more
  • Simple installation of motor assembly to spring shaft
  • Control box fastens to the wall near the door & plug into outlet (electrical pigtail required)
  • Set fully open and closed positions by running the door open and close two times
Technical Information:
  • Controller case rating: NEMA 4X/IP66
  • Controller dimensions: 8.7” H x 10.6” W x 4.5” D
  • Single phase voltage: 115 V US, 208-230V US, 208-230V EU
  • Amp draw: 5.8A
  • Control circuit voltage: 6VDC
  • Power rating: 2000 Newtons Equiv. 1.5 HP
  • Operator Motor Head Rating: NEMA 4*
  • Motor type: DC Gear Reduced
  • Motor cover dimensions: N/A
  • Motor Voltage: 48-54 VDC
  • Limits determination: Physical/Self Calibrating
  • Duty cycle rating: Continuous
  • Operating temp range: -22 deg F to 212 deg F
  • Overload protection: Inherent motor current sensing
  • Torsion shaft type required: Solid w/keyway or hollow tube
  • Fits torsion shafts diameter: 1”
    • 8825-3-HPB fits 1 Inch shaft
    • 8825-3HPC and 8825-3-HPD Work on Both 1 Inch and 1-1/4 Inch Shafts
  • Torsion shaft length required: 4.5” beyond outer edge of track
  • Side clearance required: 5” min for motor only
  • Side clearance required: 7” with motor cover applied
  • Replacement motor PN: 600814
  • Replacement belt PN/size: 8825-HPB PN600617 (AX29)
