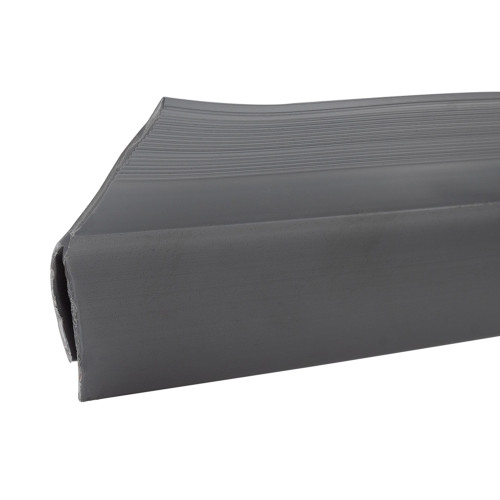

Vinyl Flexible Reverse Angle Jamb Seal

The reverse angle jamb seal is designed for commercial and industrial overhead doors with reverse angle iron around the perimeter. This flexible garage door weather seal clips directly to the wall mounting angle of the door track, creating an effective top and side seal. Because it mounts inside the opening, it is well suited for doors that do not use exterior stop molding or a conventional seal retainer.

Made from flexible vinyl weatherstripping, this seal provides durable perimeter coverage for commercial overhead doors, loading dock doors, industrial garage doors, and warehouse door applications. It can be ordered by the foot for a custom installation or purchased in bulk rolls. When ordered by the foot, the selected footage ships as one continuous piece.

Why Choose This Reverse Angle Jamb Seal?

• Clips directly to reverse angle door hardware without requiring a separate plastic or aluminum retainer
• Provides both garage door top sealing and side jamb sealing
• Creates a clean interior installation around the door perimeter
• Flexible vinyl helps maintain consistent contact along the door opening
• Suitable for commercial overhead doors, loading dock doors, industrial garage doors, and warehouse doors
• Available by the foot or in bulk rolls for single-door and larger installation projects

Choosing Your Weather Seal

Before ordering, confirm that your door uses a reverse angle configuration and that the seal will attach to the wall mounting angle of the track. This product is intended for applications where the weather seal mounts inside the opening rather than to exterior stop molding.

Technical Specifications

Package Includes

• One selected continuous length or bulk roll of flexible vinyl reverse angle jamb seal

Installation Best Practices

This reverse angle garage door jamb seal clips directly to the wall mounting angle and can be secured with common fasteners, self-tapping screws, or a compatible adhesive. Before installation, inspect the mounting angle and surrounding track for damage, rust, dirt, or other conditions that could prevent the seal from sitting evenly.

• Confirm that the attachment profile matches the existing reverse angle configuration before beginning installation.
• Measure the full top and side perimeter of the opening rather than relying only on the removed seal, which may have stretched or shrunk.
• Clean the mounting surface and remove loose dirt, rust, old adhesive, and debris.
• Position the seal evenly so it maintains consistent contact along the door perimeter.
• Use fasteners or adhesive appropriate for the mounting surface and installation conditions.
• Trim excess material only after the seal is fully positioned and the fit has been verified.

After installation, close the door and confirm that the seal makes even contact across the top and both sides without interfering with normal door operation.

Compatibility Notice

Garage door designs can vary, and retainer shapes and sizes may have changed over time. Please double-check your existing retainer or track before ordering and contact us with photos or measurements if you need help choosing the right seal.

Frequently Asked Questions

Will this reverse angle jamb seal fit every garage door?

No. It is designed for doors with reverse angle iron around the perimeter and mounts to the wall mounting angle of the track. Verify the existing door configuration before ordering.

Does this seal require an aluminum or plastic retainer?

No. The flexible vinyl seal clips directly to the reverse angle mounting surface, so a separate weather seal retainer is not required.

How do I order a custom length?

Select the desired color and the “By the Foot” option, then enter the total footage needed in the Quantity field. The ordered footage will ship as one continuous piece.

Is this the flexible TPR reverse angle jamb seal?

No. This product is made from flexible vinyl. A separate TPR flexible reverse angle jamb seal is available for customers specifically seeking the TPR version.
