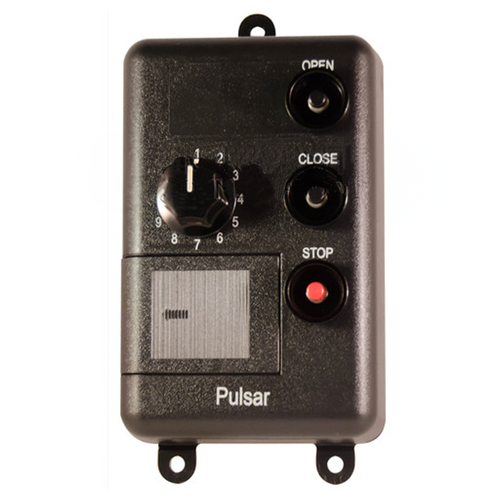

Pulsar 535T Gate and Garage Door Opener Remote Transmitter 318Mhz

The Pulsar 535T is a 3-button, 318 MHz remote transmitter designed to operate up to 27 gates or garage doors using open, stop, and close commands. It features a trinary (3-position) dip switch configuration and is compatible with the Pulsar P831 commercial receiver.

This remote is a direct replacement for multiple older transmitter models and is widely used for commercial access control systems in facilities, warehouses, and gated properties.

Product Highlights

• Part Number: 646zy

• Frequency: 318 MHz

• Dip Switch Format: Trinary (3-position)

• Button Functions: Open / Stop / Close

• Compatible Receiver: Pulsar P831

• Controls: Up to 27 gates or garage doors

• Replacement For:

  • Pulsar 535

  • Pulsar 535T

  • Pulsar 53-S

  • ADX535

  • PDX535

• Compatible With: Pulsar, Allister, and Allstar systems

Programming Instructions

To set up the transmitter:

1. Match dip switches 1–5 between transmitter and receiver.

2. Configure dip switches 6–8 on the receiver for Open, Close, and Stop functions.
