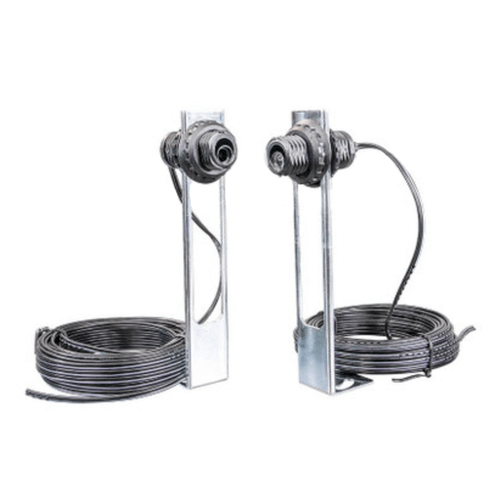

Manaras PHOTO-070 Photo Eye Beams – Monitored Thru-Beam Safety Sensors
The Manaras PHOTO-070 is a set of monitored photo eyes engineered for use with Manaras Opera commercial door operators. These thru-beam sensors detect obstructions in the door’s path, ensuring UL325 safety compliance and providing reliable entrapment protection for commercial overhead door systems.
Key Features
- Part Number: PHOTO-070
- Sensor Type: Thru-beam photoelectric safety sensors
- Operational Range: 5 ft to 45 ft
- Enclosure Rating: NEMA 1 – Indoor use
- Housing: ABS-PC blend for strength and temperature resistance
- Operating Temperature: -10°F to 165°F (-12°C to 74°C)
- Power Source: Self-powered from ECB main controller
- Compliance: UL325 monitored photo eye standard
Included in Package
- Transmitter and receiver photo eyes
- 30 ft. of bell wire
- L-shaped mounting brackets
- Mounting hardware kit
Dimensions
- Height: 2.13 in
- Width: 1.5 in
Applications
- Commercial overhead door systems
- Safety upgrades for Manaras Opera operators
- New UL-compliant installations
- Retrofit sensor solutions for warehouses and industrial doors
Installation Notes
Install at the base of the door on the inside. Connect using the included bell wire directly to the operator’s control board. Designed specifically for indoor use (NEMA 1) with straightforward mounting via supplied brackets and hardware.
