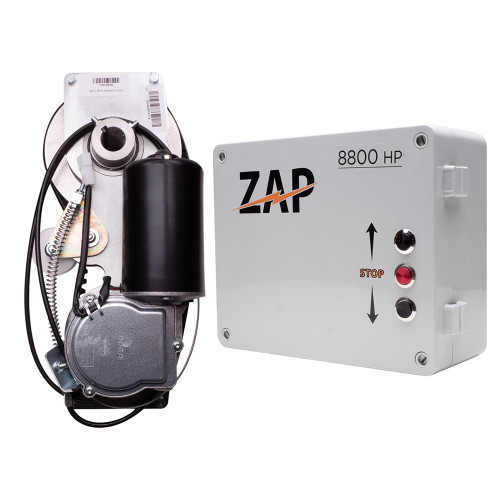

ZAP 8825 Series 3 Medium Duty Jackshaft Sectional Garage Door Opener

Action Direct assembles one of the safest, quietest, and smallest side mount DC operators in the industry right here in America! Our Zap DC garage door operator is designed with SafetySense technology, which is one of the industry’s most advanced obstruction detection systems. With SafetySense, the 8825-3 can detect an obstruction on any part of the door while opening or closing to protect not just you, but your door and its surroundings. The 8825-3 is a medium-duty commercial model operator with a 1HP motor capable of running sectional overhead garage doors that are up to 240 square feet in size and 1200 pounds in balanced weight. It is also customizable with its track configurations such as low headroom, standard lift, high lift, and full vertical lift.

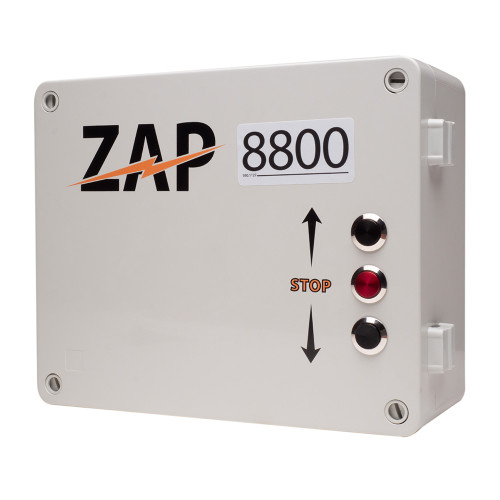

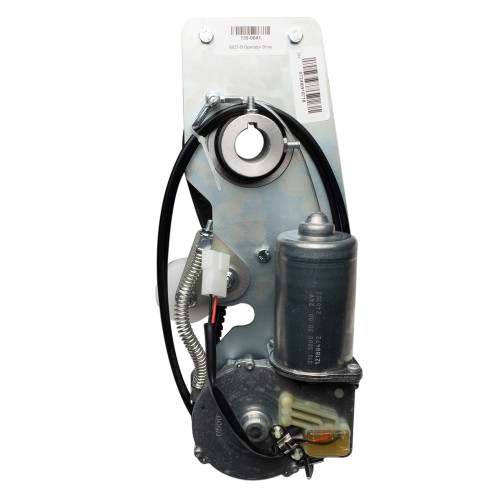

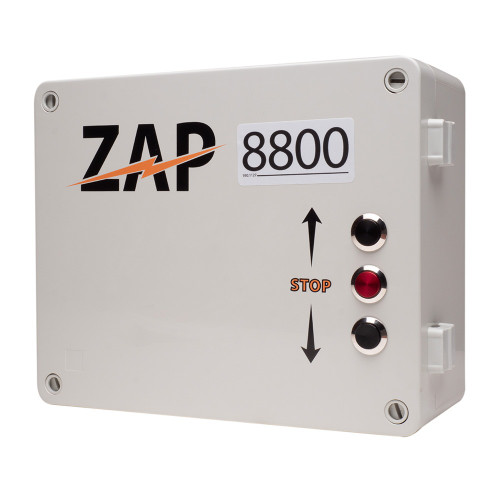

We make the motor assembly to only contain the motor, two pulleys and one belt, for an all-around quieter operation. The 8825-3 only requires 7” of side clearance and 3 ½” above the center of your spring shaft, meaning it can be installed in places where space is limited. The operator is NEMA 4 rated for water/moisture resistance and offers many built-in features like an auto close timer, cycle counter, and service due reminder. You can also add a multitude of auxiliary items to the Zap 8825-3 like interior/exterior lighting, additional wall controls, swipe card devices, dock equipment, motion sensors, alarm systems and more. Installation only requires one person with a ladder to install the motor assembly on a spring shaft. There is nothing that mounts to the wall, jamb, or header area. The Zap control box requires only four screws to be fastened to the wall near the door for installation. Power it up by plugging the operator into a nearby outlet in your garage or shop. Please note that an electrical pigtail is required. Finally, run the door open and close two times and the 8825-3 will set its fully open and closed positions for you automatically.

Product Highlights:

• Part Number: 8825-3
• Side mount
• DC operator
• Medium duty commercial model operator
• 1 horsepower
• Safe, quiet and small
• Compatible door sizes: Up to 240 sq. ft./1200 lbs.
• Contains the motor, two pulleys & one belt
• Requires 7” side clearance & 3 ½” clearance above center spring shaft
• Program features include auto close timer, cycle counter and service due reminder
• Auxiliary capabilities include interior/exterior lighting, wall controls, swipe card devices, dock equipment, motion sensors, alarm systems and much more
• Simple installation for motor assembly to spring shaft
• Control box fastens to the wall near the door & plug into outlet (electrical pigtail required)
• Set fully open and closed positions by running the door open and close two times

• Controller case rating: NEMA 4X/IP66
• Controller dimensions: 8.7” H x 10.6” W x 4.5” D
• Single phase voltage: 115 V US, 208-230V US, 208-230V EU
• Amp draw: 3.2A
• Control circuit voltage: 6VDC
• Power rating: 1300 Newtons Equiv. 1 HP
• Operator Motor Head Rating: NEMA 4*
• Motor type: DC Gear Reduced
• Motor cover dimensions:
• Motor Voltage: 48-54 VDC
• Limits determination: Physical/Self Calibrating
• Duty cycle rating: Continuous
• Operating temp range: -22 deg F to 212 deg F
• Overload protection: Inherent motor current sensing
• Torsion shaft type required: Solid w/keyway or hollow tube
• Fits torsion shafts diameter:1”
• Torsion shaft length required: 4.5” beyond outer edge of track
• Side clearance required: 4.25” min for motor only
• Side clearance required: 7” with motor cover applied
• Replacement motor PN: 600816
• Replacement belt PN/size: 8825-B PN600624 AX225.5 8825-C PN600614 AX27 8825-D PN600617 AX29

Applications:

The 8825-3 is a medium-duty commercial model operator with a capable of running sectional overhead garage doors and similar applications.
