US Automatic Ranger HD Swing Gate Operator DUAL
- All-settings swing gate operator w/ options for metal housing and solar panel
USAutomatic Ranger HD Dual Swing Gate Operator – Heavy-Duty, UL 325 Compliant (AC & Solar Models Available)
The USAutomatic Ranger HD Dual Swing Gate Operator is a high-performance, heavy-duty gate automation system engineered for demanding residential, commercial, and institutional applications. An upgrade to the original Ranger Dual 500, the Ranger HD features a 24-inch linear actuator arm designed for smooth, quiet operation and long-term reliability, with UL 325 compliance for all four gate classes (I–IV).
Each dual-arm system controls gates up to 30 feet wide and includes advanced safety and control features such as soft start/stop, manual limit adjustments, and LED indicators for easy diagnostics—all accessible directly on the control board without external tools or manuals.
Model Options:
-
Ranger HD Dual AC Operated (020517):
Includes the standard poly control cabinet, two transmitters, LCR receiver, photo eyes, and DC adapter. -
Ranger HD Dual Solar Charged (020513):
Comes with a 10-watt solar panel kit for off-grid installations, plus all the standard components. -
Ranger HD Dual AC w/ Metal Cabinet (020521):
Adds a rugged galvanized steel enclosure (USAutomatic 600020) for protection in high-traffic or industrial environments. -
Ranger HD Dual Solar w/ Metal Cabinet (020523):
Combines solar functionality with the all-weather metal housing for remote, harsh locations.
Included in All Ranger HD Dual Kits:
-
USAutomatic 020570 Control Box Assembly with hinged cover
-

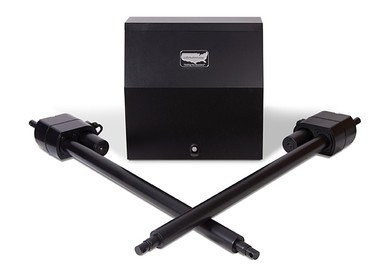

24" Linear Actuator Arms (Qty 2)
-
USAutomatic 030200 LCR Receiver & (2) Two-Button Transmitters
-
USAutomatic 520001 DC Battery Controller
-

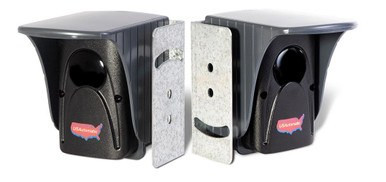

Through-Beam Photo Eye Set (550011) with alert siren
-
Push-button limit adjusters, toggle switches, and LED diagnostics
-
Essential wiring and mounting hardware
-
Battery backup (20 cycles/day for up to 7 days)
-
Compatible with gates up to 800 lbs each
Product Highlights:
-
UL 325 compliant – Classes I-IV (residential through restricted access)
-
AC or solar-powered models available
-
Supports up to 30 ft wide dual-leaf swing gates
-
Ideal for estates, farms, commercial facilities, and municipal sites
-
Up to 32 solar cycles per day, depending on location
-
Field-friendly maintenance design: no disassembly for key adjustments
-
Weather-resistant photo eyes and rugged enclosures available
-
All models require a sealed, non-lithium 30Ah battery (not included)
