3" Large EPDM Seal

SKU:: V7066-00-W

MSRP: $2.63

$2.39

(You Save $0.24)

Enter DESIRED FOOTAGE into the QUANTITY box below - Please note item will arrive as ONE PIECE in desired footage length
Usually Ships Following Business Day

Current Stock:

Quantity:

Adding to cart… The item has been added

UPC:
atc-product:: A7088-MI-W-45
atc-product:: A7088
atc-product:: A7083-MI-W-45
atc-product:: A7083
atc-product:: A7089-MI-W-45
atc-product:: A7089
availability:: available
brand-url:: /brand/action-industries/
brand-name:: Action Industries

Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Product Description
Related Products

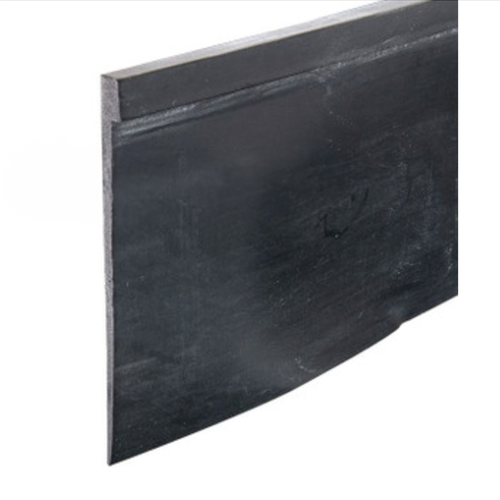

The large EPDM seal is a heavy-duty 3-inch replacement weather seal designed for use with compatible #7 large aluminum retainers on residential and commercial overhead doors. Manufactured by Action Industries, this oversized blade seal installs along the top or sides of compatible doors to help reduce drafts, moisture, dust, insects, and other outdoor contaminants. It is an excellent choice for applications where a larger sealing surface is needed to close wider gaps.

Made from durable EPDM synthetic rubber, this weather seal remains flexible across an extremely wide temperature range to deliver dependable year-round performance. It is sold by the foot, allowing you to order the exact length required, and each order is supplied as one continuous piece whenever possible for easier installation and fewer joints.

Why Choose This Large EPDM Seal?

Helps reduce drafts, moisture, dust, insects, and debris around overhead doors.
Heavy-duty EPDM rubber remains flexible in extreme hot and cold temperatures.
Designed for residential and commercial weather sealing applications.
Compatible with oversized aluminum retainers for larger sealing gaps.
Sold by the foot so you can order only the length you need.

Choosing Your Weather Seal

This oversized weather seal is intended for applications using compatible large aluminum retainers. Before ordering, verify that your existing retainer matches one of the compatible profiles listed below.

Seal Size	This product features a 3-inch-wide oversized EPDM blade seal designed for larger sealing applications.
Compatible Retainers	Compatible with Action Industries #7 retainers A7082, A7083, A7086, A7087, A7088, A7089, A7092, A7382, and A7388.
Ordering Method	Sold by the foot. Enter the total number of feet needed in the Quantity field. Orders are supplied as one continuous piece whenever possible.

Technical Specifications

Manufacturer	Action Industries
Product Type	Large EPDM Seal
Material	EPDM Synthetic Rubber
Seal Width	3 Inches
Temperature Range	-50°F to 350°F
Color	Black
Application	Residential and commercial overhead doors, storage facilities, warehouses, food facilities, and similar weather sealing applications.

Package Includes

Large 3-inch EPDM rubber weather seal

Installation Best Practices

This large EPDM seal installs into a compatible oversized aluminum retainer. Before installation, inspect the existing retainer for damage or excessive wear, as a damaged retainer can prevent the new seal from performing properly.

Verify that your existing retainer matches a compatible large #7 profile before ordering.
Clean dirt, debris, and old seal material from the retainer before installation.
Measure the installation area instead of relying on an old seal that may have shrunk.
Use a small amount of dish soap if additional lubrication is needed while feeding the seal into the retainer.
Trim excess material only after the seal is fully installed and centered.

For additional installation tips, see our garage door weather seal installation guide.

Compatibility Notice

Garage door designs can vary, and retainer shapes and sizes may have changed over time. Please double-check your existing retainer or track before ordering and contact us with photos or measurements if you need help choosing the right seal.

Frequently Asked Questions

What retainers fit this large EPDM seal?

This seal is designed for compatible oversized Action Industries retainers including A7082, A7083, A7086, A7087, A7088, A7089, A7092, A7382, and A7388.

How do I order the correct length?

Enter the total number of feet required in the Quantity field. Orders are supplied as one continuous piece whenever possible.

Can this large EPDM seal be trimmed?

Yes. Once the seal is fully installed and centered, any excess material can be trimmed for a proper fit.

Where can this seal be used?

This oversized EPDM weather seal is suitable for residential and commercial overhead door applications, including warehouses, storage facilities, food facilities, and similar environments requiring a durable weather seal.
