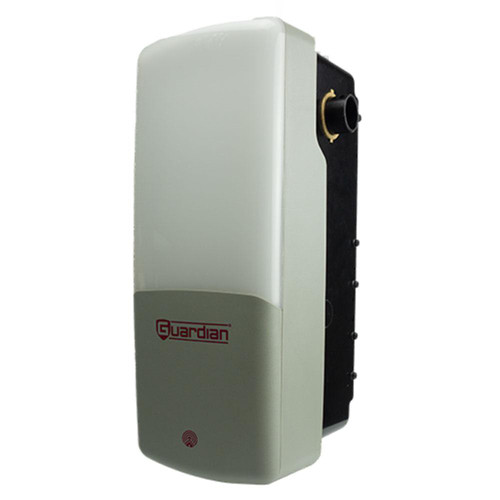

Guardian 928V Residential Jackshaft Operator

The Guardian Pro Series Garage Door Operator 928Vcombines powerful performance, smart connectivity, and advanced safety features in a compact design. Ideal for residential sectional doors up to 14 feet high and 850 lbs., this operator delivers smooth, quiet, and reliable operation.

Key Features

• Powerful 12V DC Motor: Opens doors up to 850 lbs. with nominal speeds of 8.9 in/s up and 7.3 in/s down
• Wi-Fi Smart Control Ready: Compatible with the beam Smart Controller (Model V3) for smartphone access and remote operation
• Integrated Motion Sensor Lighting: 1500 lumen LED lights activate automatically for bright garage illumination
• Automatic Deadbolt Lock: Secures the door upon closing for added safety and protection
• Photo-eye Safety System: Reverses the door if the infrared beam is interrupted, preventing injury or damage
• ClearCom® Remote Technology: Dual-burst transmission reduces interference and ensures dependable signal range
• Stable Radio Code: Fully compatible with all HomeLink® systems
• Heavy-Duty Brackets: Provide enhanced stability during operation

Optional Battery Backup

The optional B5A928 Battery Backup Kit ensures operation during power outages, providing up to 40 cycles after a 12-hour standby. The 12V non-spillable lead-acid battery includes LED status indicators and built-in overload protection.

Included Accessories

• 3-Button ClearCom® Deluxe Remote Control with visor clip
• Deluxe Door Control Console for lights, security lockout, and manual operation
• Automatic deadbolt door lock and photo-eye safety system

Compliance and Warranty

• Meets California SB969 battery backup regulations
• Lifetime motor warranty, 5-year parts warranty, and 1-year accessories warranty

For residential sectional garage doors only. Not for use with reverse wound drum configurations.
