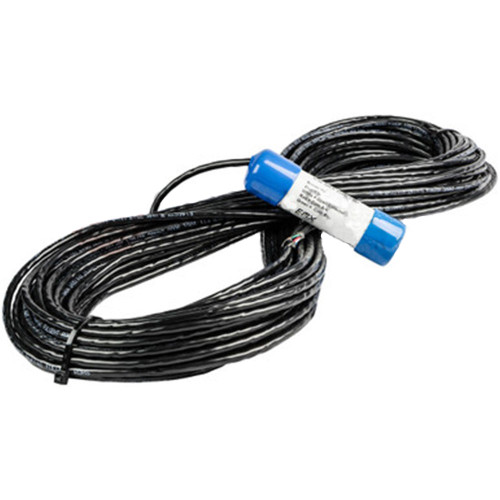

EMX LRS-DB-100 Sensor - Direct Burial with 100ft Lead
MSRP:
$291.41
$264.92
(You Save $26.49)
- Usually Ships 4 to 7 Business Days
The EMX LRS-DB-100 Direct Burial Vehicle Sensor provides reliable vehicle detection by measuring disturbances in the Earth’s magnetic field caused by ferrous objects such as cars and trucks. When a vehicle is detected, the sensor signals the control unit to activate gates or garage doors.

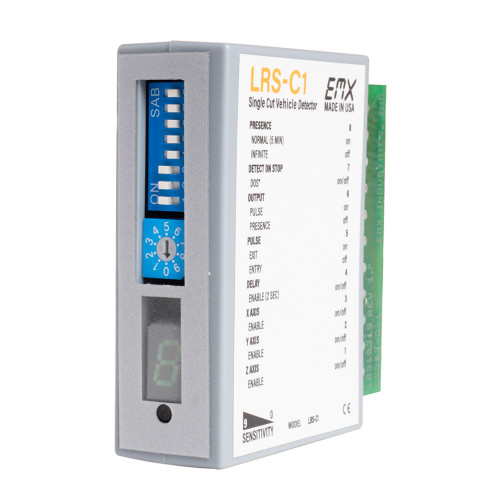

Designed for use with the EMX LRS-C1 Vehicle Detector Control Unit, this sensor supports both above-grade and below-grade installations. Its flexible design allows for vertical or horizontal placement, while its compact size enables single saw-cut installation for reduced labor and installation costs.
Key Features
- Magnetoresistive vehicle detection using Earth's magnetic field
- Includes 100 ft lead wire for flexible installation
- Compatible with EMX LRS-C1 control unit
- Supports above-ground and direct burial installations
- Detect-On-Stop™ technology reduces false triggers from cross traffic
- Three-axis sensing for improved detection accuracy
- Compact design allows single-cut pavement installation
- Non-volatile memory stores programmed settings
Specifications
- Model: LRS-DB-100
- Sensor type: Magnetoresistive (3-axis)
- Lead length: 100 ft
- Environmental rating: IP69K
- Installation: Vertical or horizontal, above or below grade
The EMX LRS-DB-100 sensor, formerly known as the CarSense CS303-DB-100, offers a durable and cost-effective alternative to traditional loop systems. Its advanced detection technology and flexible installation options make it well-suited for commercial, industrial, and residential vehicle detection applications.
