• Usually Ships 4 to 7 Business Days
  • MSRP: $262.28
    $238.44
    (You Save $23.84)
BEA

UL Listed Maglock Surface Mount Double 600 lbs Holding Force 10MAGLOCK6UL by BEA

SKU:
10MAGLOCK6UL
MSRP: $262.28
$238.44
(You Save $23.84)
  • Usually Ships 4 to 7 Business Days
Adding to cart… The item has been added
brand-name:
BEA
brand-url:
/brand/bea/
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

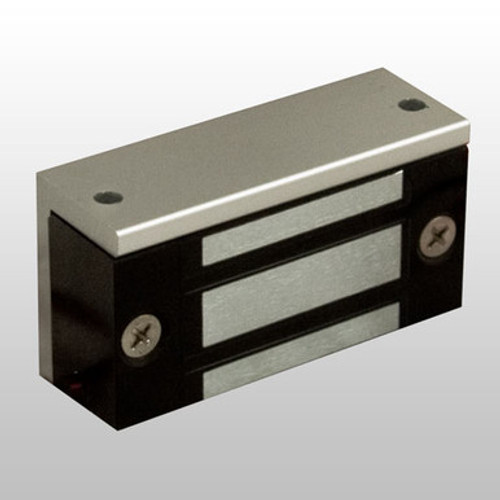

The BEA 10MAGLOCK6UL Double Surface Mount Maglock is a UL Listed electromagnetic lock designed for use in high-security facilities such as retail, healthcare, banking, and institutional environments. Built with anodized aluminum housing, this maglock provides up to 600 lbs of holding force, delivering strength and reliability for commercial-grade access control systems.

Engineered for versatility, the 10MAGLOCK6UL can be installed on hollow metal, wood, aluminum, glass, and composite doors. It features an adjustable 0–90 second relock time delay and a lock status sensor with visible LED, offering either normally open (NO) or normally closed (NC) outputs for flexible integration.

Product Highlights:

  • Item Number: 10MAGLOCK6UL

  • Double surface mount maglock with up to 600 lb holding force

  • UL Listed security solution for high-security facilities

  • Works with multiple door materials: hollow metal, wood, aluminum, glass, composite

  • Adjustable 0–90 second relock delay

  • Lock status sensor with LED indicator

  • Sensor supports NO or NC output configurations

  • Requires 12/24 VDC input voltage with UL Listed power supply

Technical Specifications:

  • Configuration: Double, surface mount

  • Holding Force: 600 lbs

  • Input Voltage: 12/24 VDC

  • Current Draw: 1A @ 12 VDC; 0.50A @ 24 VDC

  • Dimensions: 19.76" L x 1.65" W x 1.02" D

  • Material: Anodized aluminum housing

  • Relock Delay: Adjustable 0–90 seconds

  • Sensor: Lock status with NO/NC outputs

  • Output Relay: Up to 1A @ 24 VDC

The BEA 10MAGLOCK6UL double maglock delivers powerful holding strength, UL Listed compliance, and reliable performance for demanding access control applications.
