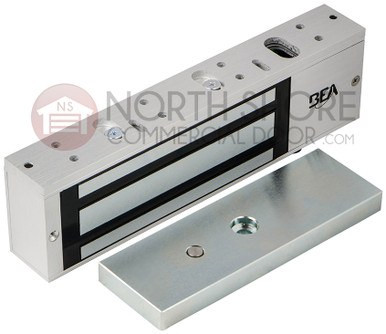

UL Listed Maglock Surface Mount Single 600 lbs Holding Force 10MAGLOCK3UL by BEA

North Shore Commercial Door now carries UL Listed Maglocks by BEA. BEA's UL Listed Maglocks are a standards compliant solution for retail, healthcare, banking and other high security facilities that require UL Listed security products. Maglocks can be used on hollow metal, wood, aluminum, glass and composite door materials. UL Maglocks include an adjustable 0-90 second relock time delay and a lock status sensor with visible LED. The lock status sensor offers either normally open (NO) or normally closed (NC) output configurations. Input voltage of 12/24 VDC, must be used with UL Listed power supply.

10MAGLOCK3UL is a single, surface mount Maglock with up to 600 lbs holding force.

Product Highlights:

• Item Number: 10MAGLOCK3UL
• Single, surface mount Maglock with up to 600 lbs holding force
• Standards compliant solution for retail, healthcare, banking and other high security facilities that require UL Listed security products
• Can be used on hollow metal, wood, aluminum, glass and composite door materials
• Adjustable 0-90 second relock time delay
• Lock status sensor with visible LED
• Lock status sensor offers either normally open (NO) or normally closed (NC) output configurations
• Input voltage of 12/24 VDC must be used with UL Listed power supply

Technical Information:

• Door Configuration:
  • Single
  • Surface Mount
• Holding Force: 600 lbs
• Input Voltage: 12/24 VDC (UL Listed power supply recommended)
• Current Draw:
  • .50 A @ 12 VDC
  • .25 mA @ 24 VDC
• Dimensions: 9.84 in x 1.65 in x 1.02 in
• Material: Anodized Aluminum Housing
• Relock Time Delay: 0-90 Seconds
• Sensor: Lock Status Sensor (NO or NC outputs)
• Output Relay: Up to 1 A @ 24 VDC
