- Added features and re-designs from conventional plates for acutal easier use; rated over 1 million lifetime cycles
- Usually Ships 4 to 7 Business Days
MSRP:
$495.38
$450.35
(You save
$45.03
)
BEA
ADA Hardwired Push Plate
MSRP:
$495.38
$450.35
(You save
$45.03
)
- Added features and re-designs from conventional plates for acutal easier use; rated over 1 million lifetime cycles
- Usually Ships 4 to 7 Business Days
- availability:
- available

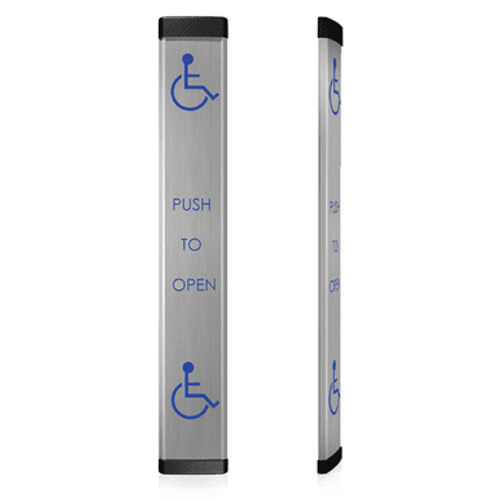

The BEA 10LPR36L-HW Full-Length Hard-Wire Push Plate is a 36-inch actuator designed for wall-mounted use with motorized or power-assistive doors. This durable, stainless steel plate provides reliable, direct-wired operation, making it ideal for environments where wireless is not preferred.
The plate features a low-relief profile at just 1-1/8” depth to prevent accidental impacts while maintaining a full-surface activation area. With four internal membrane circuits distributed across its surface, it requires only 2 lbs of force to activate swinging, sliding, folding, or revolving doors. The recessed blue ADA logos at the top and bottom clearly mark accessibility compliance, and tapered edges improve resistance to debris and damage.
Key Features:
-
Durable hard-wired design for consistent, reliable door activation.
-
Low-profile depth (1-1/8”) minimizes accidental contact and damage.
-
Full-surface activation with four touch membranes for ease of use.
-
High-quality materials — stainless steel faceplate with aluminum backplate.
-
ADA-compliant design with recessed blue logos and tapered edges.
-
Suitable for indoor or covered outdoor use with ABS endcaps included.
Technical Specifications:
-
Contact Configuration: SPST N.O.
-
Switching Voltage: 0.1–50 VDC
-
Switching Capacity: 1 W
-
Switching Current: 0.005–100 mA DC
-
Operating Temperature: -32 to 212 °F (-35 to 100 °C)
-
Dimensions: 36" (H) x 6" (W) x 1-1/8" (D)
