BEA

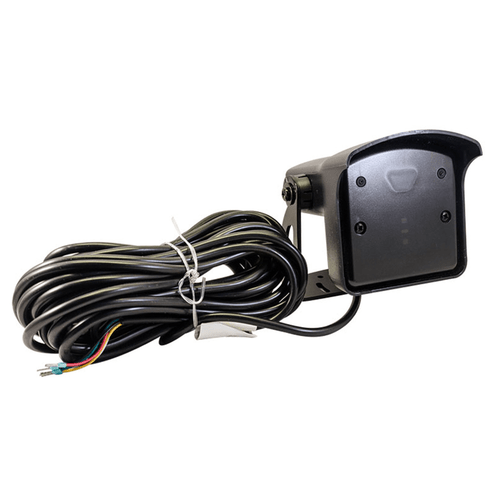

BEA Falcon Gate & Garage Door Motion Detector 10FALCONXL

SKU:
10FalconXL
MSRP: $261.91
$238.10
(You save $23.81 )
  • Usually Ships Following Business Day
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

The BEA Falcon XL Motion Detector is designed for extra-low mounting applications on gates and garage doors. Engineered for doors between 6.5 and 11.5 feet high, this unidirectional microwave sensor accurately detects vehicles while filtering out pedestrian movement — reducing false triggers.

Part of BEA’s trusted Falcon family, the XL model allows for uni- or bi-directional sensing and even opens doors when traffic moves away from the sensor. Ideal for industrial doors, vehicle gates/barriers, and any application requiring precise motion detection.

Features

  • Microwave motion detector for gates and garage doors

  • For mounting heights between 6.5’ and 11.5’

  • Uni- or bi-directional sensing

  • Distinguishes vehicles from pedestrians

  • Ideal for smaller doors and low-mount industrial applications

    Specifications

  • Technology: Microwave Doppler Radar

  • Radiated Frequency: 24.150 GHz

  • Detection Mode: Motion

  • Detection Zone: 13’ x 6.5’ at 8.5’ height

  • Tilt Angles: 0–180°

  • Output: Relay (free of potential)

  • Max Contact Voltage: 42 VAC/VDC

  • Max Contact Current: 1 A

  • Power Consumption: <2 W

  • Mounting Height: 6.5’–11.5’

  • Material: ABS & Polycarbonate

  • Protection Rating: IP65

  • Temperature Range: -22°F to 140°F

  • Norm Conformity: EMC 2004/108/EC; R&TTE 1999/5/EC
