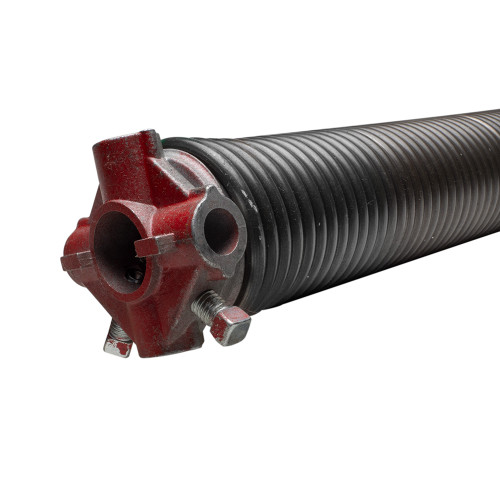

2" ID, .243 Wire, 32" RW Torsion Spring

This right-wind torsion spring is designed for residential sectional garage door systems requiring a 2" inside diameter and .243 wire size. With a 32" overall length, it provides consistent torque to support smooth, balanced garage door operation. Factory-installed winding and stationary cones help streamline installation and reduce setup time during standard spring replacement.

Key Specifications

• Inside Diameter: 2"
• Wire Size: .243"
• Overall Length: 32"
• Wind Direction: Right-Wind
• Material: Oil-tempered spring steel
• Cones: Winding and stationary cones pre-installed

Material and Construction

Manufactured from durable oil-tempered spring steel, this torsion spring is engineered to withstand the repeated opening and closing cycles typical of residential garage door systems. The material provides reliable strength and flexibility for consistent lifting force and proper door balance.

Compatibility

This spring is compatible with standard 2" torsion shaft assemblies used on residential and light commercial sectional garage doors. The right-wind configuration is typically installed on the left side of the center bracket when viewed from inside the garage.

Installation Advantage

Pre-installed winding and stationary cones allow the spring to be mounted directly onto the torsion shaft, helping installers perform efficient replacements while minimizing additional field preparation.

Part Number

• 2-243-32R – 2" inside diameter, .243 wire size, 32" length, right-wind torsion spring with cones installed

Important Safety Notice

WARNING: Torsion springs are under extreme tension and can cause serious injury or property damage if handled improperly. Installation and adjustment should only be performed by trained professionals using proper tools and established safety procedures.
