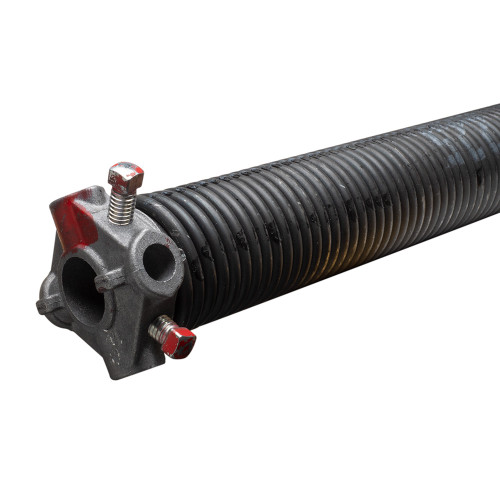

1-3/4" ID, .262 Wire, 35" RW Torsion Spring

This right-wind torsion spring is built for professional garage door systems requiring precise counterbalance and reliable cycle performance. With a 1-3/4" inside diameter, .262" wire size, and 35" overall length, it is designed for standard torsion shaft assemblies and includes winding and stationary cones installed for streamlined setup.

Key Specifications

• Inside Diameter: 1-3/4"
• Wire Size: .262"
• Overall Length: 35"
• Wind Direction: Right-Wind
• Material: Oil-Tempered Spring Steel
• Cones: Winding and stationary cones installed

Construction and Performance

Manufactured from oil-tempered spring steel, this garage door torsion spring delivers consistent torque and dependable cycle life for residential and light commercial sectional doors. The .262 wire diameter and 35" length provide the necessary lifting force when properly matched to the door weight, supporting balanced operation and reducing strain on the opener system.

Compatibility

Engineered for use with standard torsion shaft assemblies, this 1-3/4" ID torsion spring fits common garage door configurations. The right-wind orientation must match the existing spring configuration to ensure proper counterbalance and safe operation.

Installation Advantage

Pre-installed winding and stationary cones help reduce installation time and support accurate mounting on compatible torsion systems.

Part Number

134-262-35R – 1-3/4" ID, .262 wire, 35" right-wind torsion spring with cones installed.

Important Safety Notice

WARNING: Torsion springs are under extreme tension and can cause serious injury or property damage if handled improperly. Installation and adjustment should only be performed by trained professionals using proper tools and safety procedures.
