Vitector Fraba

Reflective Photo Eye Nema 4 UL325-2010 RAY-RT

SKU:
RAY-RT
MSRP: $381.57
$346.88
(You save $34.69 )
  • Usually Ships Following Business Day
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Keep your commercial garage door or gate entrance safe with the Vitector Fraba RAY-RT reflective photo eye safety beam for commercial doors. This is a NEMA 4-compliant safety beam that's compact and built tough. You can even integrate it into the guard rail of the commercial set up. The Vitector Fraba RAY-RT photo eye safety beam uses built-in Red Light technology to filter out ambient light and other infrared sensors. Built-in polarizing filters are designed to maximize detection. You only need cabling for one side of the door with the RAY-RT photo eye. The subtle design won't clash with your existing layout. This sensor has a range of 5 feet to 40 feet.

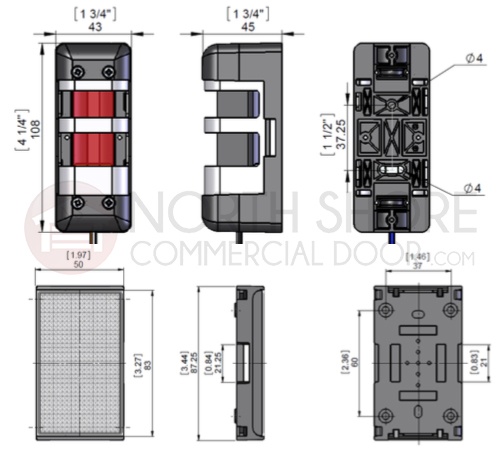

Reflective Photo Eye RAY-RT for Commercial Doors Technical Drawings

Product Highlights:

  • Item # RAY-RT
  • Range of 5' to 40'
  • Compact, sturdy
  • For commercial garage doors, gates
  • NEMA 4 compliant
  • Easily installed in challenging locations
  • Secure various points of the door
  • Can be integrated into a guard rail
  • Built-in polarizing filters to maximize detection
  • Built-in Red Light technology resilient to ambient light, other IR sensors
  • Only needs cabling for one side of door
  • LED indicates if sensor is properly aligned
  • Photo eye dimensions: 1.75" x 4" x 1.75"
  • Reflector dimensions: 2" x 3.5" x 5"
