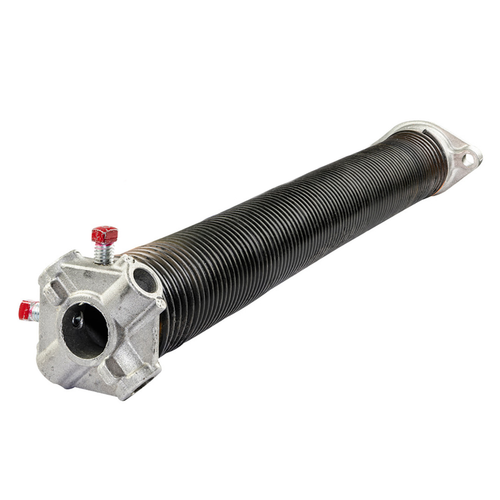

Residential Garage Door Torsion Spring

SKU:
CUT-AND-CONED-SPRINGS
MSRP: $45.78 - $63.69
$41.62 - $57.90
  • Usually Ships 4 to 7 Business Days
atc-product:
TORSION-SPRING
atc-product:
TORSION-SPRING-COMM
atc-product:
MWRDSP
atc-product:
T-RESWINDBAR18
availability:
available
Adding to cart… The item has been added

Custom Garage Door Torsion Springs – Up to 40"

Restore your garage door's performance with custom-cut replacement torsion springs designed for reliable operation and long-term durability. Each spring comes with a life expectancy of approximately 10,000 cycles, making it a dependable choice for residential or light commercial garage doors.

These replacement springs are cut to your specifications and shipped with cones pre-installed on both ends for faster, easier installation.

Important: Always replace both springs at the same time. When one spring breaks, the second is likely near the end of its lifecycle as well.



Product Highlights


  • Includes one torsion spring (up to 40" in length)

  • Cones pre-installed on both ends

  • Fully customizable: select wire size, inside diameter, and winding direction

  • Available in left-hand and right-hand wound options

  • Built for approx. 10,000 cycles of operation



How to Measure and Order

Wire Size

You can determine your spring’s wire size using:

  • A caliper or micrometer

  • A wire gauge

  • Or by measuring 10 tightly compressed coils to the nearest 1/16" and referencing a wire size chart
    Measuring 20 coils is also recommended for confirmation.

Inside Diameter (ID)

Measure the inside diameter of the spring (not the cone) to the nearest 1/16".
Common manufacturer markings or cone part numbers can help determine the correct ID:

  • 134 or 175 = 1-3/4" ID

  • 258 or 263 = 2-5/8" ID


Spring Length

Measure the spring when fully unwound.
If the spring is broken or warped, count the number of coils and multiply by wire size:

  • 120 coils × 0.250 wire = 30"

  • 120 coils × 0.375 wire = 45"

Winding Direction

Do not rely on which side of the door the spring is mounted to determine winding direction.
Most cones are color-coded:

  • Red cone = Right-hand wound

  • Black cone = Left-hand wound

Need Longer Springs?

For springs over 40" in length or special requests, contact customer service for a custom quote.
