POWERMASTER 29-20003 RECEIVER MODEL R2701 SINGLE CHANNEL PLUG-IN ROLLING CODE RECEIVER

PowerMaster 29-20003 Plug-In Receiver – R2701, 433 MHz

The PowerMaster 29-20003 Single-Channel Plug-In Receiver (Model R2701) is a secure, rolling-code solution built for fast installation and dependable access control. Designed for use with PowerMaster models 642 and 643, this receiver plugs directly into the control box and operates on a 433 MHz frequency for smooth, interference-resistant signal reception.

With a storage capacity of up to 30 transmitters, this compact unit is ideal for smaller commercial and multi-user residential setups. Programming is simple and intuitive, and the built-in LED makes it easy to confirm when transmitters have been added or removed.

Product Highlights:

• Part Number: 29-20003

• Model: R2701

• Single-channel rolling code receiver

• Operates at 433 MHz frequency

• Plug-in design for easy installation

• Compatible with:

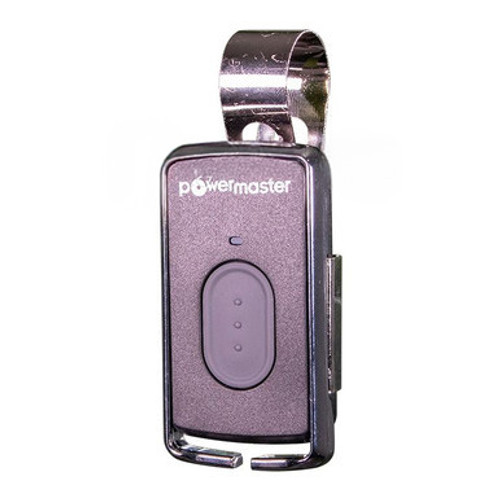

  • PowerMaster 642 (1-button transmitter)

  • PowerMaster 643 (2-button transmitter)

• Stores up to 30 transmitters

• Compact design

Product Dimensions:

• Length: 2-1/4 inches

• Width: 1-5/16 inches

• Depth: 3/4 inch

? Programming a Transmitter:

1. Press the learn button on the receiver until the red LED turns on.

2. Press any transmitter button twice.

3. The LED will flicker, then turn off to confirm successful pairing.

? Deleting a Transmitter:

1. Press and hold the learn button for ~8 seconds after the red LED lights up.

2. Release when the LED turns off.

3. The LED will flash red again briefly, confirming deletion.
