MMTC 60-2728 Nema 4 EXT Retro-reflective Photocell, Voltage-12VDC/24VAC/DC, Sensing Distance=30 Ft

SKU:: 60-2728

MSRP: $465.57

$423.25

(You Save $42.32)

Retroreflective photoeye comes with all necessary components for simple install and operation
Usually Ships Following Business Day

Current Stock:

Quantity:

Adding to cart… The item has been added

UPC:
brand-name:: MMTC
brand-url:: /brand/mmtc-access-controls/
availability:: available

Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Product Description
Related Products
Product Manual

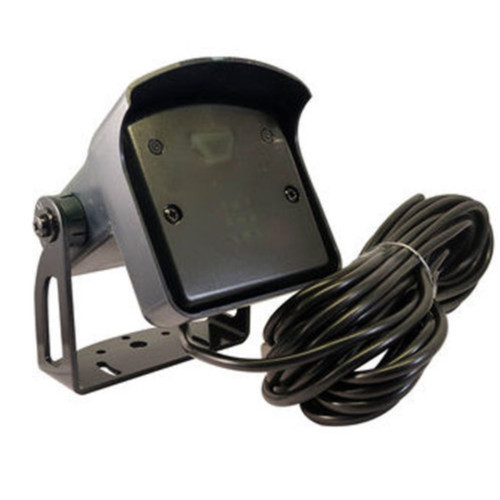

The MMTC 60-2728 NEMA 4 Retro-Reflective Photocell is a high-performance, weather-rated photo eye system engineered for commercial and industrial gate or overhead door safety. Designed for rugged environments, this photocell delivers accurate obstruction sensing in both interior and exterior installations.

Housed in a durable, NEMA-rated enclosure, this unit is built to withstand harsh conditions, including dust, dirt, oil, and incidental water exposure. A visible red nano-beam reaches up to 30 feet, using a reflective lens (included) for all-in-one obstruction detection—ideal for settings where space and alignment flexibility are important.

This unit features 3 overhead LED indicators for fast installation and diagnostics, as well as an overhead-mounted sensitivity adjustment switch. With a 0.1-second response time and advanced circuit protection, the MMTC 60-2728 provides reliable, real-time safety for gates and overhead doors.

Key Features:

Model: MMTC 60-2728
Type: Retro-reflective photocell with circular reflector
Enclosure Ratings: NEMA 3, 4, 4X, 6P, 13 | IP67 (IEC529)
Operating Range: 30 ft visible red beam
Beam Type: Two-way nano-beam with included reflector
Indicators: 3-color LED indicators for alignment and diagnostics
Sensitivity: Overhead adjustment switch for easy fine-tuning
Response Time: Fast 0.1-second detection
Voltage: 10–55V DC / 20–40V AC
Output Load: 1A @ 264V AC / 2A @ 132V AC
Cable: 6 ft oil-resistant, PVC-insulated, 5-pin power cable
Certifications: UL325 recognized (c-UL), CE marked
Environmental Use: Suitable for year-round indoor/outdoor use
Protection: Short-circuit and overload protection

Ideal Applications:

Exterior sliding or swing gate operators
Industrial overhead doors
Workshop entrances and high-traffic warehouse bays
Any application requiring durable, fast-response obstruction sensing

This photocell kit offers a compact design, maximum NEMA protection, and installation simplicity, making it an essential component for professional gate and door safety systems.
