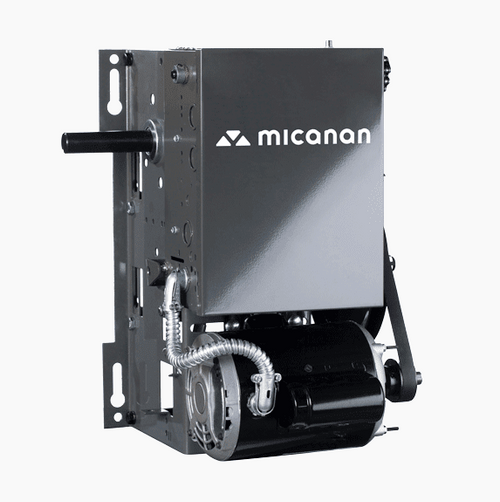

Micanan Pro-H Commercial Industrial Heavy Duty Hoist Garage Door Opener

The Micanan PRO-H is a rugged, continuous-duty commercial and industrial belt drive jackshaft garage door opener engineered for high-performance operation on sectional doors with high or vertical lift track configurations, as well as rolling steel doors and grilles.

Built for reliability, the PRO-H features a heavy-duty industrial motor with overload protection and a belt/chain drive system that ensures smooth, consistent performance even in demanding environments. It includes a manual emergency chain hoist with an electrical cut-out switch for seamless manual operation in the event of a power failure.

With a baked-on dark grey finish, durable internal components, and left/right hand mounting flexibility, the Micanan PRO-H is ideal for warehouses, factories, and high-traffic commercial bays. The onboard receiver, adjustable rotary limit switch assembly, and N-1 Micanan photo eyes for doors up to 24 ft. wide make this opener a complete access control solution.

Key Features:

• Continuous-duty motor with thermal overload protection

• Emergency chain hoist with cut-out switch

• #50 roller chain on final drive for added strength

• 3-button Open/Close/Stop control station (NEMA 1 rated)

• Adjustable friction clutch and mechanical brake system

• Internal drives use #41 roller chain & sprockets

• Motor is removable without disrupting limit settings

• Left or right-hand mountable (must be specified when ordering)

• Includes N-1 Micanan photo eyes (doors up to 24 ft wide)

• 24V class 2 control circuit with short-circuit protection

• Heavy-duty 5L V-belt and precision-sealed ball bearings

• Shipping weight: 100 lbs

• Optional: Solenoid brake (PRO-HB) recommended for large doors

• Finished in baked-on dark grey coating
