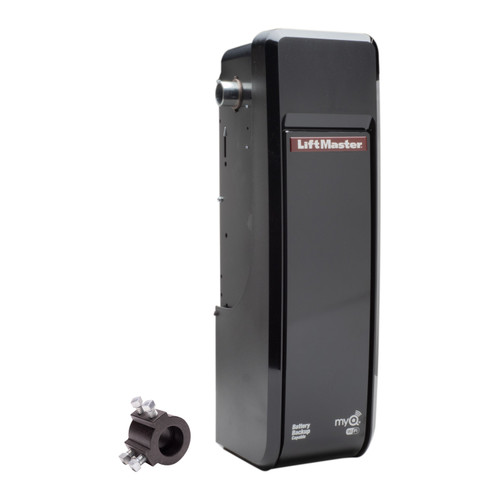

The LiftMaster LJ8900W is a premium, light-duty commercial jackshaft garage door opener built for sectional doors in warehouses, outbuildings, small businesses, and loading docks. Designed for long-term durability and modern convenience, this model features built-in Wi-Fi and MyQ® technology compatibility, allowing remote access and monitoring of your facility from anywhere using a mobile device.


Built for Performance and Durability


  • Steel Chassis with Plastic Cover: Offers durability while protecting the internal components.

  • #48 Chain and Sprocket Drive: Ensures smooth and reliable operation with minimal maintenance.

  • Auto-Force Adjustment: Automatically calibrates for changes in door weight due to weather or environmental conditions.


Powerful DC Motor and Logic Board


  • 12V DC Heavy-Duty Motor: UL-listed and equipped with thermal protection and permanent lubrication for extended life.

  • DC Wi-Fi Logic Board: Integrated surge suppression ensures long-term electronic stability.


Enhanced Security and Safety Features


  • Security+ 2.0® Technology: Provides rolling-code security, allowing only registered remotes and devices to operate the door.

  • Protector System®: Reverses door motion automatically if an obstruction is detected, ensuring workplace safety.

  • Cable Tension Monitor: Maintains proper cable tension to prevent slack and increase operational safety.




Specifications


FeatureDetails
Max Door HeightUp to 14 ft.
Max Door WidthUp to 18 ft.
Max Door Weight850 lbs
Max Square Footage180 sq. ft.
Headroom ClearanceMinimum 3 inches from torsion bar



Included Components


  • LJ8900W Commercial Door Operator

  • Cable Tension Monitor (041A6104)

  • #48 Chain and Sprocket Drive

  • Push-Button Control Station (APBS1)

  • The Protector System® Reversing Sensors




Optional Accessories (Sold Separately)


  • 827LM MyQ® Remote LED Light – Automatically turns on with the door opener and is MyQ® App-compatible.

  • 485LM Battery Backup – Keeps your door operational during power outages.

  • 841LM Automatic Door Lock – Automatically deadbolts the door when closed.

  • 480LMB Alternate Mounting Kit – Ideal for doors with low headroom (under 3 inches).

  • LC-36A Light Curtain – Expands protection zone coverage up to 36 inches; indoor use only.

  • 811LM 1-Button Remote – Perfect for facilities needing numerous remotes for shared access.

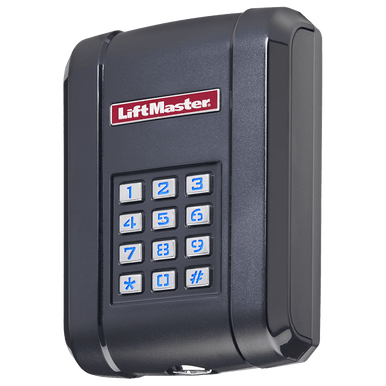

  • KPW5 / KPW250 Wireless Keypads – NEMA 4X-rated for reliable outdoor use and water resistance.




Why Choose the LJ8900W?


Whether you're upgrading an older system or outfitting a new facility, the LiftMaster LJ8900W delivers unmatched convenience, security, and long-lasting performance. From its smart connectivity to robust motor and safety features, it’s built to keep your operations moving smoothly.
