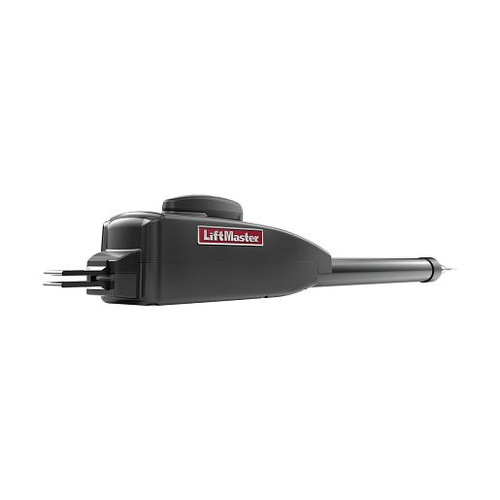

LiftMaster LA400 Residential DC Linear Gate Operator Package

The LiftMaster LA400PKGULMC is a 24VDC residential linear actuator gate operator designed for vehicular swing gate applications. This operator is not intended for pedestrian passage gates and is engineered to deliver reliable performance for residential and light commercial environments. Equipped with myQ® technology, the LA400PKGULMC supports remote monitoring and control when paired with compatible accessories, allowing users to receive gate activity notifications. Integrated Security+ 2.0® technology provides encrypted communication for extended range and secure access control.

The operator features a purpose-built P3 Motor® and a precision-machined all-metal worm gear reduction system to support smooth and consistent gate movement. Programmable auxiliary relays allow integration of optional accessories such as warning lights and audible alarms. Designed to operate in a wide range of environments, the LA400PKGULMC supports monitored entrapment protection and compliance with current UL safety standards. Always verify gate size, weight, and application requirements prior to installation.

Product Specifications

• 24VDC linear actuator gate operator for vehicular swing gates
• Rated for gates up to 16 ft. in length or weighing up to 850 lbs.
• Operator duty rating of 100 cycles per day
• UL Usage Classifications I, II, III, and IV
• 90-degree gate opening in approximately 15–17 seconds
• 120V single-phase standard control box
• Accessory power output: 24VDC, 500mA (switched and unswitched)
• Monitored safety inputs: 3 main board and 3 optional expansion board inputs
• Includes (2) 7Ah backup batteries
• Operating temperature range: -4°F (-20°C) to 140°F (60°C)
• Actuator arm weight: 19 lbs.
• Standard control box weight: 13 lbs.
• Overall dimensions: 6.06" H x 37.96" W x 3.93" D
