LiftMaster IHSL24UL 24VBLDC Continuous Duty Industrial Slide Gate Operator

The LiftMaster IHSL24UL is a 24VDC brushless industrial slide gate operator engineered for continuous-duty, high-cycle applications. Designed for demanding industrial and commercial environments, this operator is rated to move slide gates weighing up to 5,500 pounds at adjustable speeds up to 1 foot per second. At the core of the IHSL24UL is a custom industrial brushless DC motor paired with a size 70 oil-bath gearbox and direct-drive #50 industrial chain. This heavy-duty drive system supports smooth start and stop operation, mid-travel reversal, and consistent performance under sustained use.

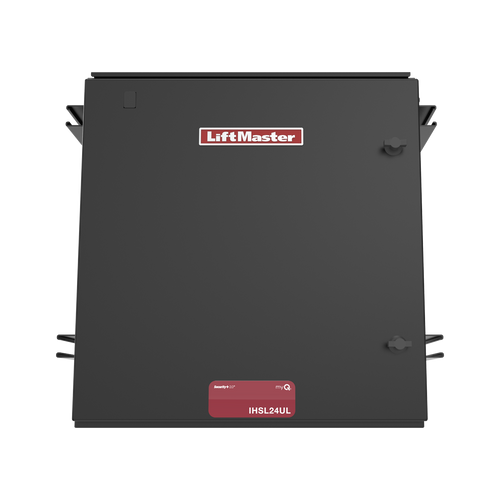

The operator is housed in a lockable, oil-tight, weatherproof NEMA 3R steel enclosure constructed from 14-gauge steel with a powder-coated finish. A manual disconnect with direct mechanical linkage allows the gate to be operated manually when needed. Integrated smart control capabilities support myQ® functionality when paired with compatible accessories, enabling centralized monitoring and control of multiple access points. Wireless dual-gate communication allows synchronized operation without the need for trenching, with independent speed adjustment if required.

Safety and access control features include inherent reversing sensors, monitored entrapment protection compatibility, anti-tailgate functionality, quick close operation, and Posilock® technology that automatically re-secures the gate if it is pushed from the closed position. Standard power input supports 120/240V single-phase operation, with optional conversion available for 3-phase input using an external kit. The system is solar-ready for applications requiring off-grid power solutions. Included monitored safety accessories support compliance with UL safety requirements. Always verify gate weight, site conditions, and application requirements prior to installation.

Product Specifications

• Industrial slide gate operator rated for gates up to 5,500 lbs.
• Variable gate speed from 0.5 ft./sec. to 1 ft./sec.
• 24VDC brushless continuous-duty motor
• High-cycle, high-temperature continuous-duty rating
• Direct-drive #50 industrial chain with high pull strength
• Powder-coated NEMA 3R lockable steel cabinet
• Chassis constructed from 1/4 in. steel
• Operator weight: 142 lbs.
• UL Usage Classifications II, III, and IV
• Security+ 2.0® onboard radio receiver supports up to 50 remote controls
• LED diagnostic display for simplified setup and troubleshooting
• Four programmable auxiliary relays for accessory integration
• Monitored safety inputs: 3 main board and 3 expansion board
• Inherent reversing sensor for obstruction detection
• Posilock® automatic re-closing from closed limit
• Quick close and anti-tailgate functionality
• Power input: 120/240V single-phase
• Accessory power: 24VDC, 1A max (switched and unswitched)
• Solar-ready system design
• Included monitored retro-reflective photo eye with heater
• Included monitored resistive edge safety device
• Overall dimensions: 30.1" H x 27.5" W x 17.1" D
