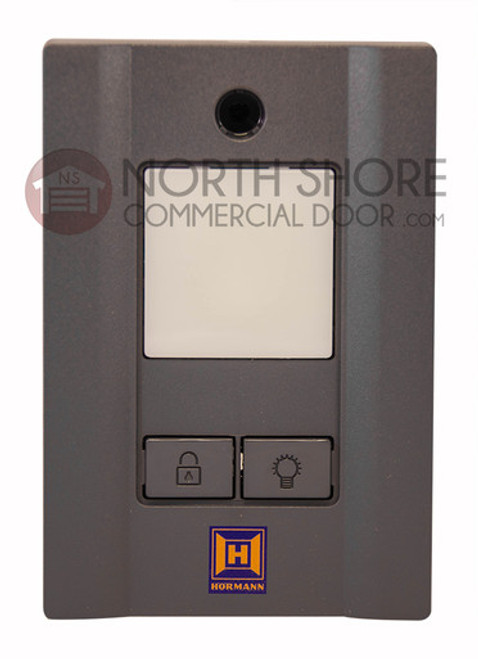

Hormann FCT3B-315 Garage Door Opener Wireless Keypad

Hormann FCT3B-315 Garage Door Opener Wireless Keypad is a user-friendly, programmable keypad that allows secure keyless entry to your garage. Operating at 315MHz, this unit is compatible with Hormann SilentDrive models SD5500, SD7500, and SD8500. With the ability to control up to three garage doors, it’s a versatile and practical addition to your home security setup.

Also known as part number D436301, the FCT3B-315 includes a protective cover, battery, installation hardware, and instructions. Setup is simple using the step-by-step programming guide, and syncing is fast using the operator's “P” button. The illuminated keypad ensures visibility in low-light conditions, making it easy to access your garage at any hour.

Product Highlights
• Model FCT3B-315 (Part # D436301)
• Operates at 315MHz
• Controls up to three Hormann garage door openers
• Compatible with SD5500, SD7500, SD8500
• Includes cover, battery, hardware, and instructions
• Simple PIN setup and syncing
• Programming guide and videos available

1. Press & release the “P” button and keep at least a 5ft distance from the operator.
2. Press & release 1 2 3 4 [Key] on the keypad slowly.
3. Test the function.

1. Press & release the [Key] button and enter 1 2 3 4 [valid access code].
2. Press & release the [Key] button again and enter a new access code.
3. Press & release the button one more time.

1. Press & release the [Key] button twice and enter 2 3 4 5 [valid access code].
2. Press & release the [Key] button again and enter a new access code.
3. Press & release the button one more time.

1. Press & release the [Key] button three times and enter 3 4 5 6 [valid access code].
2. Press & release the [Key] button again and enter a new access code.
3. Press & release the button one more time.

1. Open the cover and remove the screw near the bottom of the keypad.
2. Disconnect the old battery and press any button.
3. Insert & connect new battery.

1. With the battery disconnected, press the [0] button while reconnecting the battery until the LED stops flashing.
