Genie

GENIE GUK-BX UNIVERSAL KEYPAD

SKU:
GUK-BX
MSRP: $64.22
$58.38
(You save $5.84 )
  • Usually Ships Following Business Day
atc-product:

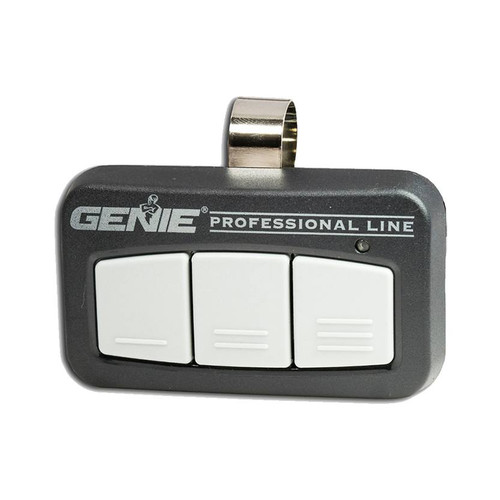

41538T
atc-product:
GM3T-BX
atc-product:
G3T-BX
atc-product:
38501R
atc-product:
GU4T-BX
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

The GUK-BX Wireless Keyless Entry Pad delivers secure and convenient garage access without the need for keys or remotes. Perfect for homeowners seeking reliable entry control.

Key Features:

  • Wireless keypad with customizable PIN access

  • Backlit buttons for effortless nighttime visibility

  • Weather-resistant housing for year-round outdoor use

  • Compatible with Genie Intellicode and select garage door systems

  • Simple, no-wiring installation in just minutes

  • Ideal for families, guests, and service providers

PROGRAMMING

The Genie Universal Keypad (Model Number 42149R) is compatible with units that program by learn button and by dip switches. To program the keypad by learn button we need to do the following steps:
  1. Enter the pin you want to use on the keypad (3-8 Digits)
  2. Press and release the UP/DOWN key to make the LED flash Slowly
  3. Find the ID# of the opener from the chart and enter it on the keypad
  4. Press the UP/DOWN arrow (LED flashes rapidly)
  5. On the Opener press the Learn or program button for 2-3 seconds
  6. Press the UP/DOWN arrow on the keypad every 2 seconds until the opener activates
If you have a Chamberlain/LiftMaster/Craftsman unit with a yellow learn button there are additional steps
  1. With the LEDs still flashing on the keypad, press the LEARN or PROGRAM Button on the opener again for another 2-3 seconds
  2. Press the UP/DOWN arrow on the keypad every 2 seconds until the opener activates
Programming dip switch units is a little different:
  1. Look at your block of dip switches and determine whether they are Binary (2-Position) or Trinary (3-Position)
  2. Copy down the position of your dip switches using the following code:
    1. TRINARY DIP SWITCHES:
      1. UP (+) POSITION - 1
      2. NEUTRAL (0) POSITION - 2
      3. DOWN (-) POSITION - 3
    2. BINARY DIP SWITCHES:
      1. UP (+) POSITION - 1
      2. DOWN (-) POSITION - 2
  3. Find and make note of the opener brand id (denoted by asterisks in the table below)
  4. On the keypad, enter a pin (3-8 digits long)
  5. Press and release the UP/DOWN arrow on the keypad (LED flashes slowly)
  6. Enter the Id number for your operator information
  7. Press and release the UP/DOWN arrow on the keypad again(LED flashes rapidly)
  8. Enter the converted dip switch code written down earlier
  9. Press the UP/DOWN arrow every two seconds until door operates

ID #BRAND NAMEGARAGE DOOR OPENER SPECIFICATION NOTES
1Genie®315/390 MHz, Intellicode® I, 1995-current
1Overhead Door®315/390 MHz, CodeDodger® I, 1995-current
2Chamberlain®
LiftMaster®
Craftsman®
Purple Learn Button, Security +®, 2006-2014, 315MHz
3Orange/Red Learn Button, Security+®, 1996-2005,390MHz
4Yellow Learn Button, Security + 2.0®, 2011-current, 390MHz
5Green Learn Button, Billion Code®, 1993-1995, 390MHz
6Genie®315/390 MHz, Intellicode®II, 1995-current
6Overhead Door®315/390 MHz, CodeDodger® II, 1995-current
7Sommer®310 MHz, Rolling Code
8Linear®318 MHz, MegaCode®
9Wayne Dalton®372.5 MHz, Rolling Code, 1999-current
10Ryobi®372.5 MHz, Rolling Code
11Guardian®303 MHz, Fixed Learn Code
11Xtreme® brand303 MHz, Fixed Learn Code
12Marantec®315 MHz, Fixed Learn Code
21*Genie®390 MHz, 12 Switch / 2 Position Dip Switch*
22390 MHz, 9 Switch / 2 Position Dip Switch*
23*Stanley®310MHz, 10 Switch/2 Position Dip Switch*
31*Overhead Door®390 MHz, 9 Switch / 3 Position Dip Switch*
32*Chamberlain®390 MHz, 9 Switch / 3 Position Dip Switch*
PLEASE NOTE - Dip-switch models are denoted by an asterisk (*) PRODUCT HIGHLIGHTS:
  • PART NUMBER: 41249R
  • Compatible with rolling code and dip switch radio controls manufactured since 1993
  • Programs by digital dip switches or learn button
  • Dip switch settings:
    • TRINARY (3-POSITION) DIP SWITCHES:
      • UP (+) POSITION - 1
      • NEUTRAL (0) POSITION - 2
      • DOWN (-) POSITION - 3
    • BINARY (2-POSITION) DIP SWITCHES:
      • UP (+) POSITION - 1
      • DOWN (-) POSITION - 2
  • Easy to program - LED and touch responses to button press
  • Controls up to three different doors
  • Compatible with the following major brands: Genie, Overhead Door, Chamberlain, LiftMaster, Craftsman, Sommer, Linear, Wayne Dalton, Ryobi, Guardian, Xtreme, Marantex, FAAC, and Stanley
  • Uses two (2) AAA Batteries with easy battery access
  • Program temporary codes for guests and visitors
  • Mounting screws (2x) included
  • REPLACEMENT PARTS:
    • 41496R.S - White Flip Cover
    • 41495R.S - Battery Door Cover
