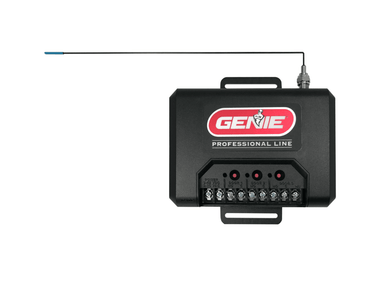

Genie 41488R Intellicode and Fixed Code Three Door Receiver

Genie’s 41488R External Three Door Receiver allows up to 255 Intellicode transmitters used across three garage doors. The 41488R uses 315/390 MHz Intellicode dual band technology for increased door security on older operators and reduces chances of signal interference. A set of 9-trinary dip switches allowed for fixed code use at 390 Mhz. Genie Intellicode Transmitters are also available to purchase from North Shore Commercial Door.

• External 3-door Garage Door Receiver
• Allows up to 255 Intellicode Transmitters combined across three doors
• Single door mode allows for Open/Close/Stop functionality for a single door
• Powered by plugging directly into the operator or with an optional A/C adapter pack (Liftmaster part # 39193A.S)
• Fixed code frequency 390 MHz
• 315/390 MHz Intellicode Dual Band Technology
• Supports an unlimited number of fixed code remote controls on up to three doors
• A unique fixed code can be based on each door
• Remote and fixed code mode may be configured on any of the three door outputs
• Compatible with the 39193A.S Power Adapter
• Genie single door intellicode receivers also available from North Shore Commercial Door

• Receiver Input Voltage: 9-42 VDC or 9-30 VAC, 50-60 Hz

• Receiver current draw: 150mA@9V, 141mA@12V, 104mA@24V, 85mA@42V

• Power Pack: 115 VAC, 0.5 A, 50-60 Hz
• Power Pack Output: 12 VDC, 1 A
• Temperature Range: -30°F to 158°F
• Includes: Intellicode receiver, antenna, wire, staples, and instructions
• Receiver dimensions:
• Height: 5-11/16 inches
• Width: 5-3/8 inches
• Depth: 1-3/8 inches
• Antenna dimensions:
• Height: 1-1/4 inches
• Length: 9-1/4 inches
Compatible with the following Genie Remote Controls from Action Industries:
• GIDFX1.S
• GIDFX2.S
• GIDFX3.S
• GIDFX4.S
• GIDFX5.S
