Safety Edge Kit, 20'

Pneumatic Reversing Safety Edge Kit – Action Industries Non-Monitored UL Safety System for Commercial Doors

Enhance safety and reduce the risk of entrapment with the Pneumatic Reversing Safety Edge Kit by Action Industries. This non-monitored, UL-approved system is designed to fit into the existing bottom seal of commercial garage doors, providing responsive protection by reversing or halting the door when an obstruction is detected.

The system operates using a pressurized pneumatic sensing edge (gum hose) that, when compressed, sends air to an interior or exterior air switch. This signal is then transmitted through a coil cord to the door operator, which responds by stopping or reversing the door based on the operator’s configuration.

Ideal for facilities prioritizing safety compliance and protection, this universal kit is compatible with 2-wire and 3-wire commercial door operators.

Key Features

• Compatible with 2-wire and 3-wire commercial operators

• UL Approved – Meets UL 325 guidelines for external entrapment protection

• Designed for Commercial Door Applications Only

• Non-Monitored Safety System – Requires monthly manual activation testing

• Universal Fit – Easy to install and integrate into existing door systems

• Pre-Packaged Kit for Convenience

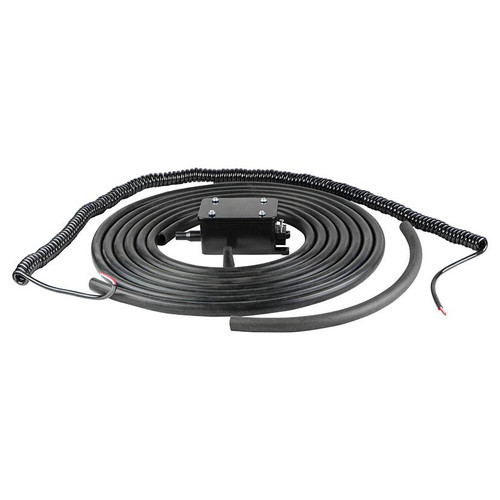

Kit Contents

• 1 Air Switch (interior or exterior installation)

• 1 ft. of Treadle Hose

• 20 ft. of Gum Hose (pressurized sensing edge)

• 1 Gum Hose Plug

• 20 ft. 2-Wire Coil Cord

Installation Notes

• Designed to fit inside the existing bottom weather seal on commercial sectional or rolling doors

• Air pressure activation system is operator-dependent and must be checked for compatibility

• Monthly activation testing of the sensing edge is recommended to ensure proper functionality
