Seal. Secure. Operate.

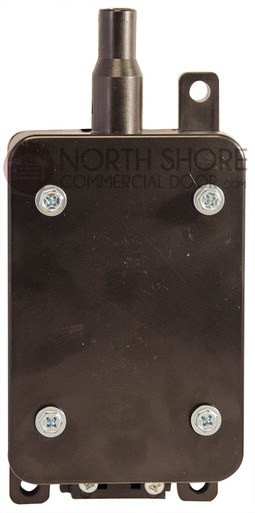

The AS-1 3-Wire Air Switch is a key component in non-monitored reversing safety edge systems used in commercial garage door operators. Designed for both interior and exterior use, this versatile air switch is compatible with 2- or 3-wire operator setups and helps enhance the safety and reliability of overhead door systems.
This unit operates by connecting to a pressurized air chamber within the bottom seal of the door. When an obstruction is detected and compresses the chamber, air pressure activates the switch, which sends a signal to the door operator to stop or reverse movement—helping prevent damage and injury.
The AS-1 model features convertible contact settings, allowing users to configure it as either normally open (NO) or normally closed (NC), depending on their system’s requirements. It's ideal for installers and technicians working on commercial doors, loading docks, and industrial access points.
Model: AS-1 (Alternative SKU)
Switch Type: Air-activated switch for safety edge systems
Wire Compatibility: 2-wire or 3-wire systems
Contact Configuration: Selectable between normally open (NO) or normally closed (NC)
Application:
Works with pressurized air chambers inside door bottom seals
Activates safety reversal functions on impact detection
Durability: Designed for indoor or outdoor installation
Voltage & Power: Passive switch — relies on system circuitry
Safety Note: For use in non-monitored systems; user must ensure UL325 compliance
Note: Not compatible with driveway treadle hoses.
(1) Gummed Hose Air Switch
Internal switch mechanism
3-wire terminal compatibility
Commercial overhead doors
Industrial loading bays
Rolling steel or sectional garage doors
Safety edge installations requiring contact flexibility
This 3-wire air switch provides a reliable, low-maintenance solution for commercial door safety systems. Its dual-configuration capability and rugged build make it a must-have for safe and compliant door operations in any setting.
Action Industries
