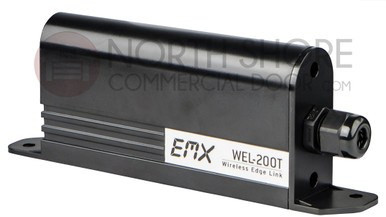

Transmitter, Wireless Edge Link, WEL-200T

The WEL-200 Wireless Edge Link System by EMX Industries delivers a complete wireless solution for connecting monitored safety edges to gate and door operators. By eliminating the need for direct wiring between the safety edge and operator control box, the system ensures both convenience and compliance with UL325 monitoring standards.

With a reliable operating range of up to 200 feet, the receiver can connect with up to four transmitters, each offering separate relay and pulse outputs for open and close edge functionality. Both transmitter and receiver are enclosed in rugged, watertight NEMA 4X housings, ensuring dependable performance in harsh environments.

The WEL-200T transmitter supports 8.2K and 10K monitored safety edges and is powered by two AA lithium batteries, delivering up to two years of operation. The WEL-200R receiver is designed for easy installation and maintenance, featuring enhanced diagnostic feedback for edge open/short conditions, low battery, and failed transmitters. It supports all common monitoring methods, including normally closed (NC), resistive termination (10K), and pulse output.

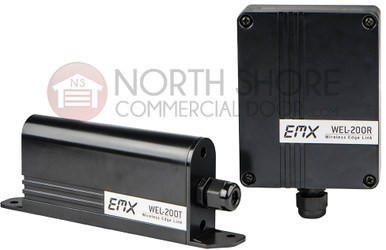

For a complete setup, the WEL-200K Kit includes one transmitter (WEL-200T) and one receiver (WEL-200R).

Note: Units manufactured after August 2020 feature a red control board and are not compatible with older green board models.

Product Highlights

• Wireless Edge Link Transmitter & Receiver System

• Interfaces sensing edges with gate & door operators

• 200-ft range between transmitter and receiver

• Eliminates hardwiring to operator control box

• UL325 monitoring standard compliant

• Connect up to four transmitters per receiver

• Separate relay & pulse outputs for open/close edge control

• Rugged NEMA 4X enclosures for durability

• Compatible with 8.2K and 10K monitored safety edges

• Transmitter runs up to 2 years on 2 AA lithium batteries

• Item Number: WEL-200T

• Alternative Kit SKU: WEL-200K

Technical Specifications

• Operating Range: Up to 200 ft (line of sight)

• Response Time: 100ms

• Indicators: Green transmit/status LED

• Power Supply: 3–3.6 VDC (2x AA lithium batteries)

• Battery Life: 2 years at 25°C

• Environmental Rating: NEMA 4X

• Operating Temperature: -40˚C to 60˚C (-40˚F to 140˚F)

• Dimensions (L x W x H): 180mm x 32mm x 67mm (7.0" x 1.3" x 2.6")

• Weight: 170g (6 oz.)

• Connections: 2 terminals (18–26 AWG)
