EMX

EMX ULT-PLG ULTRALOOP Plug-in Vehicle Loop Detector

SKU:
ULT-PLG
MSRP: $104.59
$95.08
(You save $9.51 )
  • Usually Ships Following Business Day
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

EMX ULT-PLG ULTRALOOP™ Plug-In Vehicle Loop Detector
Smart, Compact, and Full-Featured for Modern Access Control

The EMX ULT-PLG vehicle loop detector offers the ideal balance of compact design and advanced functionality, providing accurate vehicle detection for commercial gates, access control systems, and parking applications. Operating on 12–24 VDC, this plug-in module is designed for quick installation and reliable performance in space-constrained environments.

Featuring proprietary DETECT-ON-STOP™ (DOS) technology, the ULT-PLG activates only when a vehicle comes to a complete stop over the loop, allowing it to ignore cross traffic—making it ideal for tight spaces and directional flow control.

With an intuitive ULTRAMETER™ sensitivity display, 10 sensitivity settings, four frequency selections, and solid-state outputs, the ULT-PLG is engineered for adaptability, interference prevention, and minimal maintenance.


Key Features

  • Model: ULT-PLG

  • Operating Voltage: 12–24 VDC

  • Form Factor: Plug-in module with 10-pin female connection

  • Detection Modes: Presence and motion

  • Output Type: Solid-state (discrete)

  • Primary Output: Vehicle presence indication

  • Secondary Output: Configurable for pulse on entry/exit, presence, or loop fault

  • Sensitivity Settings: 10 adjustable levels via ULTRAMETER™ display

  • Frequency Options: 4 selectable frequencies to eliminate cross-talk in multi-loop setups

  • DETECT-ON-STOP™: Triggers only when vehicle comes to a full stop over the loop

  • Fail Safe/Fail Secure Options: Selectable based on installation requirements

  • Presence Time Settings: Normal (5 minutes) or infinite

  • CE Compliant: Meets international safety standards

  • Low Current Draw: Eco-friendly design


Benefits

  • Enhanced Accuracy: DOS feature filters out unintended detection from moving traffic

  • Energy Efficient: Low current consumption supports green installations

  • Easy Setup: Plug-in style with ULTRAMETER™ sensitivity display simplifies installation and tuning

  • Compact Design: Perfect for small enclosures and retrofit projects

  • Reliable Output: Solid-state outputs offer durability and fast response


Applications

  • Commercial gate operators

  • Parking barrier systems

  • Industrial vehicle access points

  • Secure facilities and restricted areas

  • Traffic control in confined spaces


Compatible Accessories

  • PR-LOOP vehicle detection loop

  • EMX receiver/controller systems

  • Compatible with many standard gate operators


Technical Comparison – EMX Vehicle Loop Detectors

ModelOutputVoltageChannelForm FactorDOSULTRAMETER™Outputs
ULT-PLGSolid-State12–24 VDCSinglePlug-in (10-pin)Pulse on entry/exit, presence

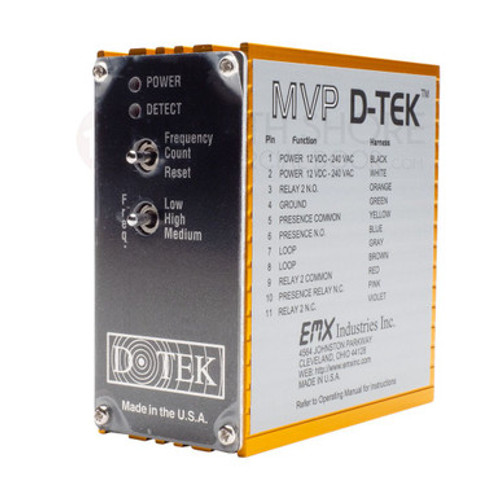

ULT-MVPDual Relay12 VDC–240 VACSingleABS (11-pin)Entry/exit pulse, presence
ULT-DINDual Relay12–24 VDC/ACSingleDIN Rail MountEntry pulse
ULTRA IIRelay12–30 VDCSingle7-Terminal ScrewEntry pulse

Included With Purchase

  • EMX ULT-PLG Plug-In Loop Detector

  • User installation and configuration guide


Upgrade your access control system with the EMX ULT-PLG—a next-gen vehicle loop detector that delivers intelligent detection, cross-traffic filtering, and advanced configuration options—all in a compact and easy-to-install format.
