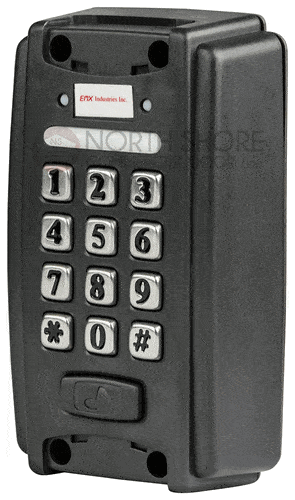

EMX PRX-320 Waterproof Proximity Card Reader/Keypad
MSRP:
$260.13
$236.48
(You Save $23.65)
- Usually Ships 4 to 7 Business Days
The EMX PRX-320 is a fully weatherproof, stand-alone proximity card reader and keypad designed for outdoor gate and door access control. Built for automatic gates and entry doors, it supports up to 2,000 card users and up to eight keypad pass codes, providing flexible and secure entry management.
Access Capacity & Entry Modes
- Up to 2,000 users by proximity card
- Up to 8 programmable four-digit pass codes
- Four selectable door opening modes:
- Four-digit pass code only
- Proximity card only
- Proximity card plus four-digit pass code
- Proximity card or four-digit pass code
Electrical Specifications
- Power Requirements: 12 VDC, 500–800 mA
- Power Consumption: 90 mA standby / 110 mA activated
- Relay Contact Rating: 3A at 12VDC
Performance & Indicators
- Read Range: Up to 5 inches
- Red LED bar: Constant power indication
- Green LED: Key press confirmation
- Green LED bar: Entry confirmation (timed)
- Yellow LED flashing: Access denied
- Yellow LED constant: Alarm condition
Construction & Compliance
- Fully weatherproof housing for outdoor installations
- Low energy consumption, suitable for solar-powered systems
- Built-in contact for doorbell annunciator
- CE certified and RoHS compliant
The PRX-320 proximity card reader keypad provides secure, programmable access control in a compact outdoor-rated design. With multiple entry configurations, low standby power draw, and clear LED status indicators, it is well suited for residential, commercial, and light industrial gate and door systems.
