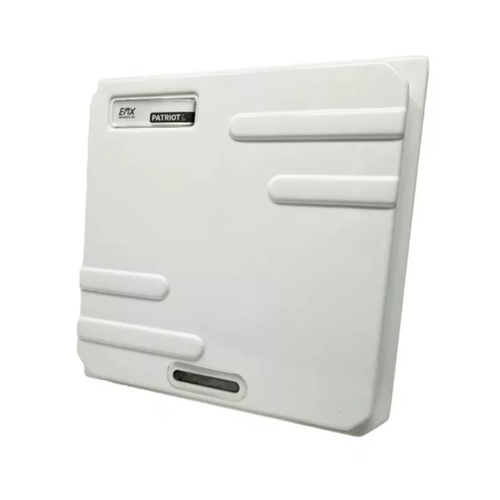

EMX PATRIOT-E Circular Polarized UHF RFID Reader

The Patriot-E RFID Reader is a high-performance, long-range access control solution designed for reliability, flexibility, and ease of integration. With an impressive 18–25 ft. read range (site and tag dependent), this unit ensures seamless access management for vehicles, gated communities, and secured facilities.

Supporting multiple communication protocols—including RS232, RS485, Wiegand, and OSDP—the Patriot-E provides compatibility with a wide range of systems. Its variable 9–48VDC input and included 110/240AC to 12VDC power supply make installation simple, while the LED and sounder indicators give clear status feedback.

Built with an IP65-rated housing, this RFID reader withstands harsh environments and extreme temperatures (-20°C to +70°C). The device also offers powerful customization options such as adjustable RF power, LED and buzzer controls, relay settings, and facility code isolation.

For added convenience, the Patriot-E can store up to 500 authorized tag numbers for standalone access control, making it a versatile choice for both small and large-scale applications.

What’s in the Box:

• Patriot-E RFID Reader

• Power Supply

• Mounting Bracket

• Test Tag

Software-Adjustable Features:

• Adjustable RF dBm levels

• LED and buzzer on/off controls

• Relay and buffer timing adjustments

• Wiegand timing configuration

• Facility code isolation

Patriot-E Specifications:

• Model: Patriot-E

• Frequency: 902–928 MHz

• Max RF Power: 30 dBm (1 Watt)

• Read Range: 18–25 ft.

• Antenna: Circular Polarized 7.5 dBi gain

• Indicators: LED + sounder

• Power Input: 9–48 VDC (includes 110/240AC to 12VDC supply)

• Current Draw: 1.82 A max @ 5VDC, 470mA standby

• Communication Outputs: Wiegand, RS-232, RS-485, OSDP, relay contact

• Configuration Options: RJ45 Ethernet, WiFi

• Tag Compatibility: Window tags, hang tags (Bluetooth optional)

• Standalone Mode: Store up to 500 tags (5 site codes, 100 per site)

• Environmental Rating: IP65, -20°C to +70°C

• Size: 8.78″ x 7.87″ x 2.36″

• FCC Compliance: Part 15

The Patriot-E RFID Reader delivers cutting-edge performance, flexible integration, and rugged durability—making it an ideal choice for advanced access control systems.
