EMX Raven Microwave Motion Sensor
MSRP:
$328.51
$298.65
(You save
$29.86
)
- Usually Ships 4 to 7 Business Days
- availability:
- available
The RAVEN Microwave Motion Sensor from EMX Industries is now available for purchase at North Shore Commercial Door. This compact presence sensor is perfect for commercial and industrial applications, including truck or tow-motor detection, auto shops, parking garages, car wash entrances, cold storage facilities, and more. It can also activate automatic commercial or industrial doors.

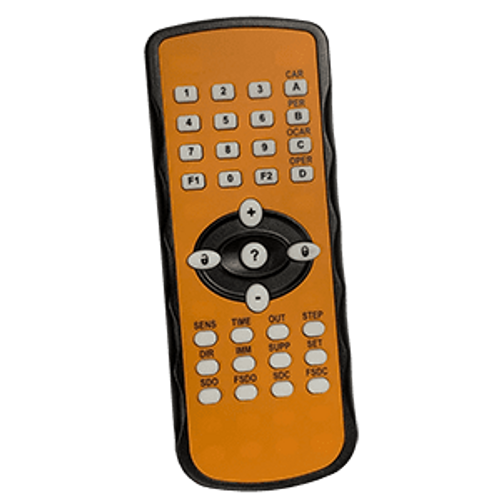

Measuring 5.16” W X 2.87” and H x 5.35” D, the RAVEN has a maximum detection range of 16 ft x 26 ft. The ease-of-use installation makes this a quick and easy job for any installer. Capable of bidirectional or exit-only detection, the RAVEN uses programmable settings to filter out cross-traffic such as pedestrian or vehicle traffic. The 26-foot cable that is included gives the sensor a mounting height range of 8-23 feet. A durable waterproof housing (IP67 rated) allows this sensor to be used in harsh environments. To program the RAVEN, use the RAVEN-RC remote control. This remote control communicates perfectly with the motion sensor to expedite the settings you need. The RAVEN-RC features built-in security, allowing users to set a code that must be entered before making changes to the sensor's detection.
North Shore Commercial Door prides itself on quality customer service and providing the best and most complete product information to its customers. Contact us at 800-783-6112, or email support@northshorecommercialdoor.com with any questions.
Product Highlights:
| Operating Frequency | 24.150 GHz |
| Detection Range | Dependent on sensor height and housing angle Max. detection range of 23 ft (7 m) x 23 ft (7 m) at an installation height |
| Vertical Directionality | +/- 90° in 15° increments (up/down) |
| Horizontal Directionality | +/- 18° (left/right) |
| Mounting Height | 8-23 ft (2.5-7 m) |
| Power | 12-36 VDC or 12-28 VAC |
| Current Draw | 50 mA @ 24 VDC |
| Relay Output | 2 relay outputs (vehicle & pedestrian) NO/NC |
| Relay Hold Time | 0.5 to 300 seconds (adjustable) |
| Relay Contact Rating | 1 A @ 24 VDC/AC |
| Operating Temperature | -4° to 140°F (-20° to 50°C) below 90% relative humidity |
| Dimensions (W x H x D) | With mounting bracket – 5.16” (131 mm) x 2.87” (73 mm) x 5.35” (136 mm) |
| Connection | 26 ft (8 m) cable |
| Housing Material | Polycarbonate |
| Weight | 1.4 lbs (650 g) with cable |
| Environmental Rating | IP67 |
