BEA 10TD900TR - 900 MHz Touchless RetroFit Transmitter

The BEA 10TD900TR 900 MHz Touchless Retrofit Transmitter is a simple, hard-wired solution designed to quickly upgrade existing automatic door systems to BEA’s enhanced Magic Switch touchless actuators. Housed in a compact, durable ABS enclosure, this transmitter enables a seamless transition from touch-to-touchless operation, making it ideal for ADA-compliant and timed/delayed door opening applications.

With a straightforward two-wire power connection and three-wire relay contact setup, the 10TD900TR is easy to install. When paired with the BEA BR3-X Logic Module, it provides flexible control and communication between Magic Switch sensors and door operators. Its adjustable hold time and push-to-hold open with push-to-close functionality ensure reliable and convenient operation in any environment.

Product Highlights:

• Item Number: 10TD900TR

• 900 MHz hard-wired transmitter for upgrading to touchless door activation

• Compatible with BEA Magic Switch touchless actuators and BR3-X Logic Module

• Adjustable hold time with push-to-hold open and push-to-close functions

• Fast, simple installation with two-cable power hookup and three-color relay wires

• Ideal for ADA-compliant and delayed/timed door openings

• Compact ABS housing for durability

Compatible BEA Devices:

• MagicSwitch Touchless Activation Sensor (10MS08U)

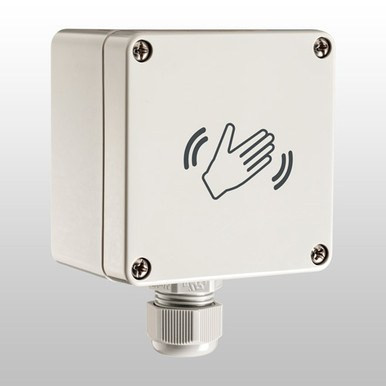

• MagicSwitch NEMA 4-Rated Touchless Device with Waving Hand Symbol (10MS09L)

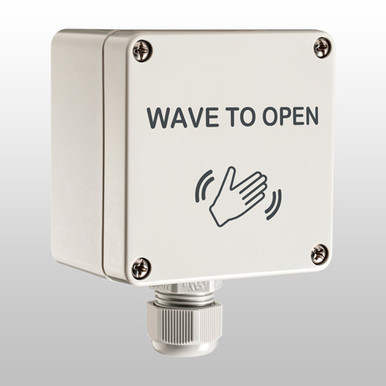

• MagicSwitch NEMA 4-Rated Touchless Device with WAVE TO OPEN Text & Symbol (10MS09TL)

Technical Specifications:

• Frequency: 908–918 MHz (frequency hopping)

• Power: 12–24 VAC/DC ±10%

• Power Consumption: 22 mA

• LEDs: Red (activation indicator)

Dimensions:

• Length: 1.72”

• Width: 1.06”

• Depth: 0.32”
