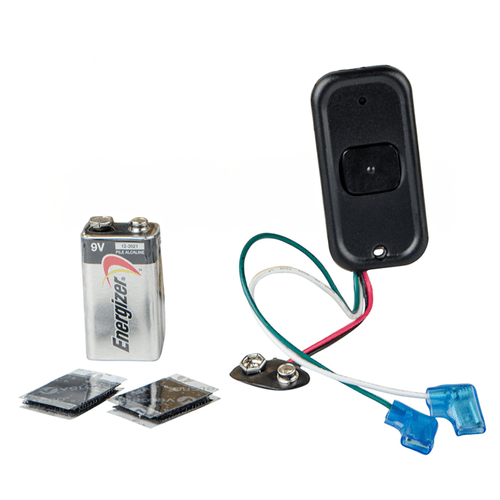

BEA 433 MHz 1-Button Hard-Wired Digital Transmitter w/Flag Connectors 9-Volt Battery 10TD433PB9V

BEA 10TD433PB9V 433 MHz Digital Transmitter

The BEA 10TD433PB9V is a compact, hard-wired digital transmitter designed for secure activation of automatic door systems. Operating at 433 MHz, it uses rolling code technology to prevent signal conflicts and enhance security in access control applications.

Key Features

• Item Number: 10TD433PB9V
• Transmission: 433 MHz rolling code for interference-free operation
• Activation: Single push-button with hard-wired flag connectors
• Status Indicator: Internal LED confirms transmission
• Power: Standard 9V battery
• Capacity: Supports up to 100 transmitters per receiver
• Programming Modes: Delay / No-delay, Toggle / Pulse, adjustable relay hold time
• Compatibility: Works with most automatic door systems (not compatible with 10BOXJAMBST jamb box)

Technical Specifications

• Frequency: 433 MHz
• Transmitter Power Output: –28.7 dBm
• Power Consumption: 3 mA (transmitter); 30 mA (receiver)
• Receiver Input Voltage: 12–24 VAC/DC
• Contact Rating: 1.0 A @ 30 VDC; 0.5 A @ 125 VAC; 0.3 A @ 60 VDC
• Operating Temperature: 14°F to 131°F (–10°C to 55°C)
• Certifications: FCC, IC
• Status LEDs: Red – receiver learning mode; Blue – relay activation

Dimensions

• Transmitter: 2.75” × 1.375” × 0.56” (70mm × 35mm × 14mm)
• Receiver (reference): 2.75” × 2.125” × 1” (70mm × 55mm × 25mm)

The BEA 10TD433PB9V is an excellent choice for secure access control, automatic door activation, and retrofit applications requiring reliable signal performance and flexible programming options.
