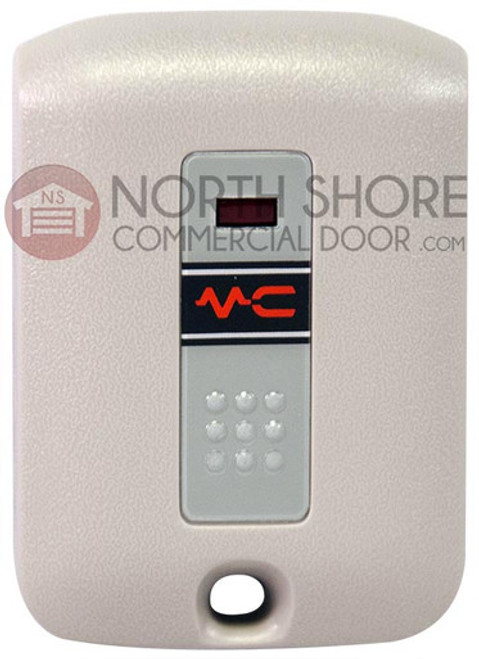

BEA 1-Button Hard-Wired Digital Transmitter 433MHz w/Flag Connectors 3-Volt Battery 10TD433PB3V

Boost the reliability and security of your wireless door activation system with the BEA 10TD433PB3V 433 MHz Digital Transmitter. Engineered for universal compatibility with automatic door systems, this single-button transmitter uses rolling code technology to send a unique, secure signal each time it's activated—ensuring enhanced access control in commercial environments.

The 10TD433PB3V features a compact design powered by a 3V lithium button battery and includes flag connectors for straightforward integration. An internal LED indicator confirms transmission activity, while the 433 MHz frequency enables reliable signal strength and range. It's the ideal choice for facilities requiring secure, wireless vestibule sequencing or remote operation.

Key Features:

• Item Number: 10TD433PB3V

• Frequency: 433 MHz

• Secure Operation: Rolling code transmission for secure signal

• Power Source: 3V lithium "button" battery

• Interface: 1-button, hard-wired with flag connectors

• Visual Feedback: Built-in LED activation indicator

• Compatibility:

  • Works with BEA 10RD433 Digital Receiver

  • Recommended for use with BEA 10PBDGP1 Dual Vestibule Push Plates

  • Replaces legacy model 10TD433PB12V

• Not Compatible With: BEA 10BOXJAMBST Jamb Style Surface Mount Box

• Receiver Capacity: Program up to 100 transmitters into a single receiver

• Mode Options: Toggle or pulse via DIP switch

• Hold Time Settings: 0.5 or 10-second relay hold

Technical Specifications:

• Emitted Power: -28.7 dBm (TX)

• Power Consumption: 3 mA (TX), 30 mA (RX)

• Input Voltage (Receiver): 12–24 VAC/DC

• Contact Rating:

  • 1.0 A @ 30 VDC

  • 0.5 A @ 125 VAC

  • 0.3 A @ 60 VDC

• Operating Temperature: 14°F to 131°F (-10°C to 55°C)

• Max Programmed Units Per Receiver: 100

• LED Indicators:

  • Red: Receiver Learn Mode

  • Blue: Relay Activation

Dimensions:

• Transmitter: 2 3/4" x 1 3/8" x 9/16" (70mm x 35mm x 14mm)

• Receiver: 2 3/4" x 2 1/8" x 1" (70mm x 55mm x 25mm)

• Certifications: FCC, IC

This versatile and secure wireless transmitter is perfect for facilities looking to streamline access while maintaining safety and reliability. Pair the BEA 10TD433PB3V with compatible receivers and push plates to create a robust wireless door activation system.
