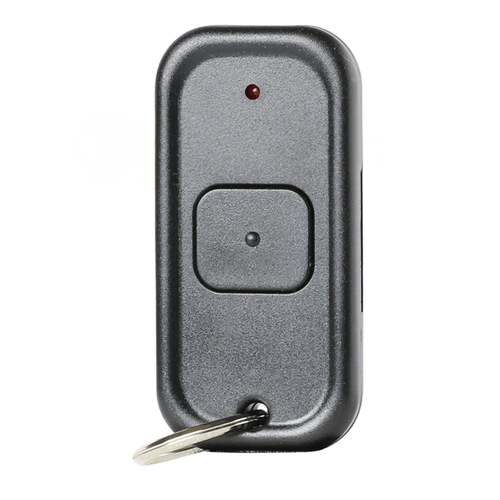

BEA 433 MHz 1-Button Hand-Held Digital Wireless Transmitter 10TD433HH1
MSRP:
$41.68
$37.89
(You save
$3.79
)
- Usually Ships Following Business Day
- availability:
- available
The BEA 10TD433HH1 is a compact, 1-button wireless transmitter operating at 433 MHz, designed for secure and reliable activation of automatic doors. Built for compatibility with the BEA 10RD433 and 10RD433EH digital radio control receivers, this hand-held remote uses a unique rolling code transmission to prevent interference and unauthorized activation—ensuring optimal performance in high-traffic commercial environments.
Ideal for use in access control, pedestrian door automation, and wireless sequencing, the 10TD433HH1 offers flexible programming features, including pulse or toggle mode, configurable hold times from 0.5 to 10 seconds, and delay/no-delay options. The system can support up to 100 individual transmitters per receiver, making it perfect for multi-user or facility-wide deployments.
Product Highlights
-
Item Number: 10TD433HH1
-
Frequency: 433 MHz digital RF transmission
-
Design: Hand-held, single-button remote
-
Security: Rolling code technology ensures secure signal transmission
-
Power Supply: 3V lithium button battery (included)
-
Compatibility:
-
BEA 10RD433 Receiver
-
BEA 10RD433EH Receiver
-
-
LED Indicator: Confirms activation and learn mode status
-
Users per Receiver: Supports up to 100 transmitters per receiver
-
Compact Dimensions: 2.75" H x 1.375" W x 0.56" D (70mm x 35mm x 14mm)
Technical Specifications
| Parameter | Value |
|---|---|
| Emitted Power: | –28.7 dBm (TX) |
| Power Consumption: | 3 mA (TX), 30 mA (RX) |
| Input Voltage (Receiver): | 12–24 VAC/DC |
| Contact Ratings: | 1.0 A @ 30 VDC, 0.5 A @ 125 VAC |
| 0.3 A @ 60 VDC | |
| Operating Temperature: | 14°F to 131°F (–10°C to 55°C) |
| Certifications: | FCC, IC |
LED Indicators
-
Red LED: Receiver Learn mode
-
Blue LED: Relay Activation
Applications
-
Commercial automatic door systems
-
Handicap accessible entryways
-
Wireless door sequencing setups
-
Remote activation of vestibule or sliding doors
-
Healthcare, retail, and institutional buildings
Why Choose the BEA 10TD433HH1?
-
Compact and easy to carry
-
Secure rolling code prevents interference or code theft
-
Easily integrates with BEA’s 433 MHz receiver line
-
Ideal for high-volume facilities with up to 100 users
-
Simple battery replacement and long battery life
The BEA 10TD433HH1 1-Button Wireless Transmitter combines compact convenience, robust security, and long-range reliability—making it the perfect wireless activation solution for automatic doors, access systems, and commercial entryways.
