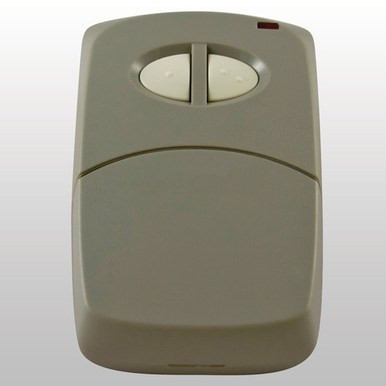

The BEA 10T300HHDBL is a 300 MHz hand-held analog transmitter with two buttons, designed for reliable wireless activation of automatic doors. Part of BEA’s 300 MHz analog radio control series, this transmitter is universally compatible with any automatic door application and includes a protective case and clip for convenience.

Supporting up to seven transmitters per receiver, the 10T300HHDBL offers strong, short-range transmissions and an easy installation process. It features flag connectors that plug directly into most BEA push plate switches, while DIP switch programming provides up to 1,024 unique identifier codes for secure, customizable operation.

Product Highlights:


  • Item Number: 10T300HHDBL

  • 300 MHz hand-held analog transmitter

  • Two-button design controls two receivers

  • Includes protective case and clip

  • Universally compatible with all automatic door applications

  • Supports up to seven transmitters per receiver

  • DIP switch programming with up to 1,024 unique codes

  • Strong, short-range analog transmission

  • Flag connectors fit most BEA push plates


Technical Information:


  • Frequency: 300 MHz

  • Radio Control Type: Analog

  • Input Voltage: 24V AC/DC

  • Operating Temperature: +14°F to +131°F (–10°C to 55°C)

  • Setup: 10-position DIP switch

  • Power:

    • Hardwired: 9V or 12V battery

    • Wireless: 9V or 12V battery

  • Maximum Transmitters Per Receiver: 7

  • Certifications: CE, FCC, IC


Receiver Dimensions (for reference):


  • Without Flange: 4.9” × 3.2” × 1.4”

  • With Flange: 5.4” × 3.2” × 1.4”
