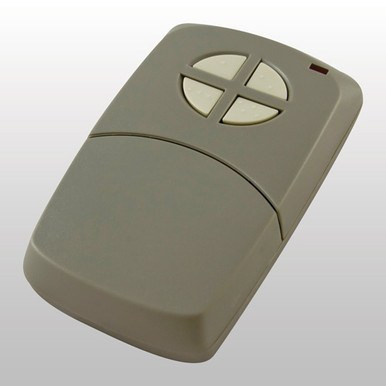

BEA 300 MHz 4-Button Hand-Held Wireless Transmitter 10T300HH4

The BEA 10T300HH4 is a 300 MHz hand-held analog transmitter with four buttons, providing reliable wireless activation for up to four automatic doors or receivers. Part of BEA’s 300 MHz analog radio control series, it is universally compatible with all types of automatic door systems and comes with a protective case and clip for added convenience.

Supporting up to seven transmitters per receiver, the 10T300HH4 offers strong, short-range analog signals and an easy installation process. It features flag connectors that plug directly into most BEA push plate switches and uses DIP switch programming to offer up to 1,024 unique identifier codes for secure, customizable operation.

Product Highlights:

• Item Number: 10T300HH4

• 300 MHz hand-held analog transmitter

• Four-button design controls up to four receivers

• Includes protective case and clip

• Universally compatible with all automatic door applications

• Supports up to seven transmitters per receiver

• Easy-to-install with flag connectors and DIP switch programming

• Provides up to 1,024 unique identifier codes

• Strong, short-range analog signal

Technical Information:

• Frequency: 300 MHz

• Radio Control Type: Analog

• Input Voltage: 24V AC/DC

• Operating Temperature: +14°F to +131°F (–10°C to 55°C)

• Setup: 10-position DIP switch

• Power:

  • Hardwired: 9V or 12V battery

  • Wireless: 9V or 12V battery

• Maximum Transmitters Per Receiver: 7

• Certifications: CE, FCC, IC

Receiver Dimensions (for reference):

• Without Flange: 4.9” × 3.2” × 1.4”

• With Flange: 5.4” × 3.2” × 1.4”
