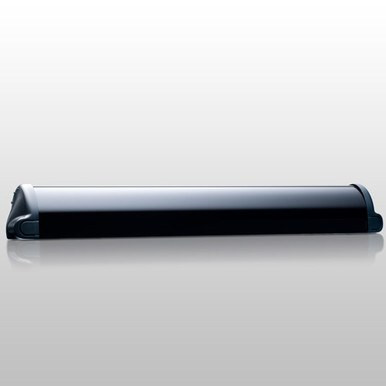

Quadscan I CUSTOM SERIES by BEA Active Infrared Safety Sensor 10QUADSCANICUSTOM

SKU:
10QUADSCANICUSTOM
MSRP: $251.19
$228.35
(You save $22.84 )
  • Usually Ships 4 to 7 Business Days
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

The BEA Quadscan I Custom Series (10QUADSCANICUSTOM) is a door-mounted active infrared presence detection sensor designed for standalone safety on pedestrian automatic swinging doors. Available from North Shore Commercial Door, this externally monitored* sensor provides reliable protection with customizable coverage and easy installation.

With adjustable mounting heights from 43" to 118", the Quadscan I Custom Series delivers approximately 16" of safety coverage per sensor when mounted at 78". It features independent relays for approach and safety sides and user-friendly adjustment with four DIP switches for fine-tuning frequency, reflectivity, zone height, and door side. Its universal module design supports both leading edge and hinge side protection, meeting ANSI standards for standalone swing door safety.

Product Highlights:

  • Product Number: 10QUADSCANICUSTOM

  • Includes: 1 custom length module

  • Door-mounted active infrared presence detector

  • Standalone safety sensor, externally monitored*

  • Compatible with pedestrian automatic swinging doors

  • Adjustable mounting height: 43"–118"

  • Independent relays for approach and safety sides

  • Four DIP switches for easy adjustments

  • Master/slave configuration for simplified wiring

  • No remote control required for setup

  • Meets ANSI standard for swing door standalone safety




Technical Specifications


  • Technology: Active infrared with background suppression

  • Detection field: 15.75" (W) × 2.75" (D) at 6.5 ft height (4 spots active)

  • Mounting height: 3'7"–9'10" (1.1m–3m)

  • Range adjustment: Mechanical screw

  • Reaction time: 64 ms (typical)

  • Supply voltage: 12–24V AC ±10% / 12–30V DC -5%/+10%

  • Max current: 65 mA @ 24V AC / 75 mA @ 24V DC per module

  • Output: 2 relays (potential-free), max 1 A @ 42V AC/DC

  • Input: 1 optocoupler, max 30V

  • Max modules: 4 (6 with 24V DC)

  • Reflectivity: Minimum 5% at 850nm IR wavelength

  • Protection rating: IP53

  • Operating temperature: -13˚F to +131˚F (-25˚C to +55˚C)

  • Compliance: EMC 2004/108/EC, MD 2006/42/EC, EN ISO 13849-1:2008 PL <<c>> CAT 2, EN 12978
