10MS31CUSTOM TEXT + HANDICAP LOGO (All size & color options) ___ PLAIN (All size & color options

The BEA 10MS31CUSTOM Touchless Actuator Kit offers a fully customizable solution for hygienic and convenient door activation. Designed for hospitals, pharmacies, clean rooms, food service areas, and more, this kit reduces touchpoints to help prevent the spread of germs. Part of BEA’s Magic Switch family, it is compatible with full energy swing doors, low energy swing doors, and industrial doors. With an adjustable detection range of 4–24 inches and a silent activation mode, it is ideal for noise-sensitive and sanitary environments.

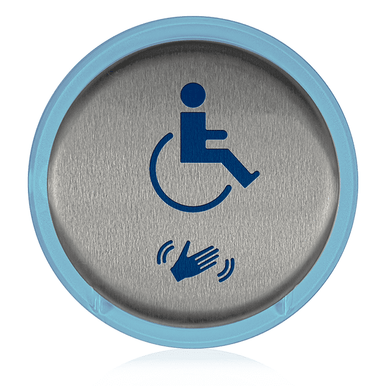

This kit includes a faceplate, sensor, and mounting bracket, and is available in a variety of configurations to meet your needs. Choose plate size (jamb, single-gang, double-gang, or 6-inch round), color (black, gray, or white), and graphic (plain, text with hand logo, or text with accessibility logo). It can be surface-mounted with optional mounting boxes or flush-mounted into a standard electrical box.

Features & Benefits:

• Touchless actuator with adjustable detection zone (4–24 inches)

• LED indicator with configurable illumination modes

• Silent activation for sensitive environments

• Durable IP54-rated enclosure for weather and cleaning protection

• Compatible with full/low energy swing and industrial doors

• Available in various faceplate sizes, colors, and graphic options

Technical Specifications:

• Technology: Microwave Doppler Radar (24.125 GHz)

• Detection Mode: Motion (bidirectional)

• Output: Relay with switch-over contact (voltage-free)

  • Max Contact: 60 VDC / 125 VAC, 1 A

  • Output Hold Time: 0.5–30 seconds

• Power: 12–24 VAC ±10%, 12–24 VDC +30% / -10%, <1.5 W

• Operating Temperature: -4°F to 131°F

• Weight: 0.34 lbs

• Material: PC, PE

• IP Rating: IP54

• Certifications: EMC 2004/108/EC, FCC G9B-210161, IC 4680A-21061

Dimensions:

• Single-Gang: 4.5” H × 2.75” W × 0.25” T

• Jamb Plate: 4.5” H × 1.75” W × 0.25” T

• Double-Gang: 4.5” H × 4.5” W × 0.25” T

• Round Plate: 6” D × 0.25” T
