• Logo and text engraved; added-touch-sensitivity automatic push plate door opener
  • Usually Ships 4 to 7 Business Days
  • MSRP: $551.33
    $501.21
    (You save $50.12 )
BEA

BEA 10LPR36-900 Wireless Push Plate ADA

SKU:
10LPR36-900
MSRP: $551.33
$501.21
(You save $50.12 )
  • Logo and text engraved; added-touch-sensitivity automatic push plate door opener
  • Usually Ships 4 to 7 Business Days
availability:
available
Adding to cart… The item has been added
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

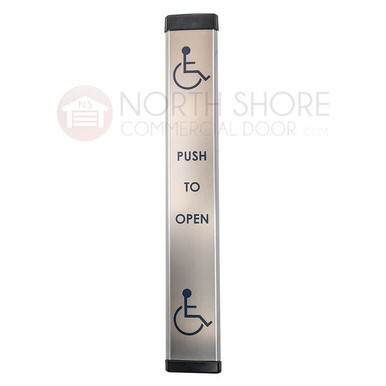

The BEA 10LPR36-900 Wireless Push Plate with ADA logo and text is a 36-inch actuator designed for motorized and power-assisted doors in both interior and exterior environments. Its low-profile design reduces the risk of accidental damage while providing maximum accessibility for limited-mobility users. The integrated 900 MHz transmitter is housed in the ABS plastic top end-cap, offering superior resistance to moisture, weather, and debris.

This push plate features a large activation surface with four touch-sensing membranes, ensuring that the door can be activated from any point on the plate, at both high and low reaches. The durable steel faceplate includes recessed cobalt-blue ADA logo and “PUSH TO OPEN” text for clear visibility.

Key Features:


  • Low-profile design (1-1/8” deep) minimizes accidental damage and is ideal for high-traffic areas.

  • Full-surface activation with four internal membranes for accessibility from any angle.

  • Weather-resistant construction with corrosion-resistant aluminum internal components and steel exterior.

  • Integrated 900 MHz transmitter housed in the top end-cap for reliable wireless operation.

  • ADA-compliant design with blue ADA logo and clear text for visibility and compliance.

  • Versatile installation — wall-mounted or attached to a bollard post.

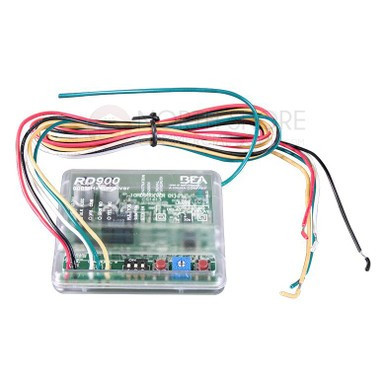

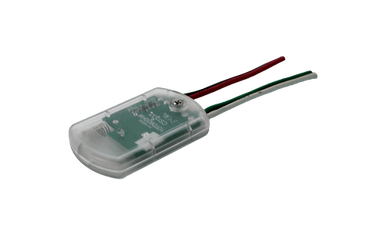

  • Compatible with BEA receivers, including the 10RD900 Industrial Receiver Module and 10TD900TR Touchless Retrofit Transmitter.


Technical Specifications:


  • Contact Configuration: SPST N.O.

  • Switching Current: 0.005 to 100 mA DC

  • Switching Voltage: 0.1–50 VDC

  • Switching Capacity: 1 W

  • Operating Temperature: -32 to 212 °F (-35 to 100 °C)

  • Dimensions: 36" (H) x 6" (W) x 1-1/8" (D)
