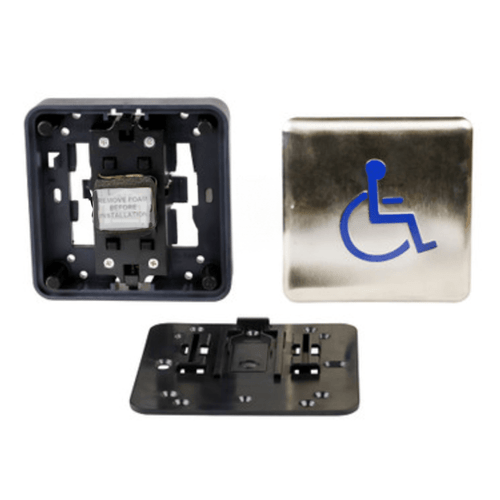

BEA Panther 4.75 Square Push Plate Assembly Handicap Logo 10EMS475L"

The BEA Panther 4.75" Square Slim Profile Push Plate Assembly (10EMS475L) is a compact, wireless activation solution designed for automatic doors. This model features a blue handicap logo and comes fully assembled with an integrated 433 MHz wireless transmitter and mounting box. The NEMA 4/IP65-rated housing ensures durability and weather resistance for both outdoor and wash-down applications. Integrated wireless technology reduces installation time and eliminates the need for additional wiring or mounting hardware, offering flexibility in spaces where hardwired options are not feasible.

Note: Compatible 433 MHz wireless receiver (10RD433) is required and sold separately.

Key Features:

• Item Number: 10EMS475L

• 4.75" square stainless steel push plate with handicap logo only

• Integrated 433 MHz wireless transmitter and mounting box

• Fully assembled, concealed fasteners for vandal resistance

• Weather-resistant NEMA 4/IP65 rated housing

• Compatible receiver (10RD433) required, sold separately

Technical Information:

• Dimensions: W 5.12 in x H 5.12 in x D 1.42 in

• Weight: 1.04 lbs.

• Mounting Options: Surface or bollard mount

• Transmitter Frequency: 433 MHz

• Power: 12V Type A23 battery

• Materials:

  • Faceplate: 16 Gauge, 304 2B Stainless Steel

  • Housing: ABS Plastic

• Degree of Protection: NEMA 4 / IP65, FCC IC Part 15 Approved
