Automatic Technology 86341 ShedMaster Sheet Door Operator

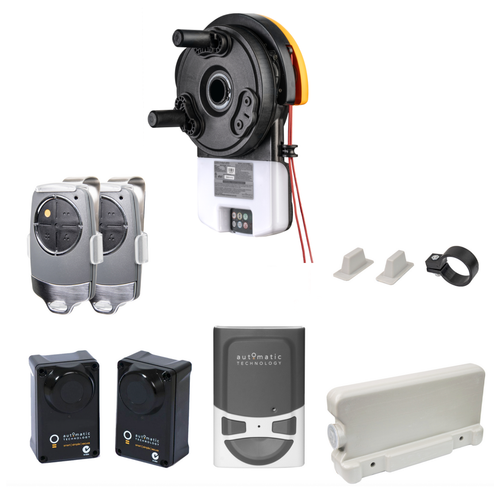

The Automatic Technology 86341 Dominator ShedMaster Shed-Door Operator is a complete operator kit designed for upward-moving, manually operable rolling or corrugated doors. Ideal for storage units and mini-warehouses, it combines convenience and security with a side-mount drive unit, two 4-button layered rolling-code transmitters, photo-eye safety sensors, fasteners, and door clamps. With vacation mode and up to 5,000 cycles of durability, it’s built for dependable daily use and secure storage access.

Features & Benefits:

• Comprehensive kit: operator, 2 transmitters, photo eyes, hardware

• Side-mount design for mini-warehouse and rolling-corrugated doors

• UL-325 and ADA compliant, layered rolling-code security

• Vacation mode locks out access for delinquent rentals

• Installs in about 30 minutes

• Rated up to 5,000 cycles

• Requires minimum 3” side clearance; works only with dead-axle doors

• Power supply: 120V AC, 60Hz

• Max door weight: 220 lbs, max area: 160 sq. ft.

Compatible Accessories:

• 81330 Trio-Code Remote

• 86651 Keypad

• 40200 Wired Photo Eyes

• 86652 Wall Button
